In-mold magnetic field alignment review for anisotropic bonded magnet compounds, multipole rings, and high-output molded rotor programs.

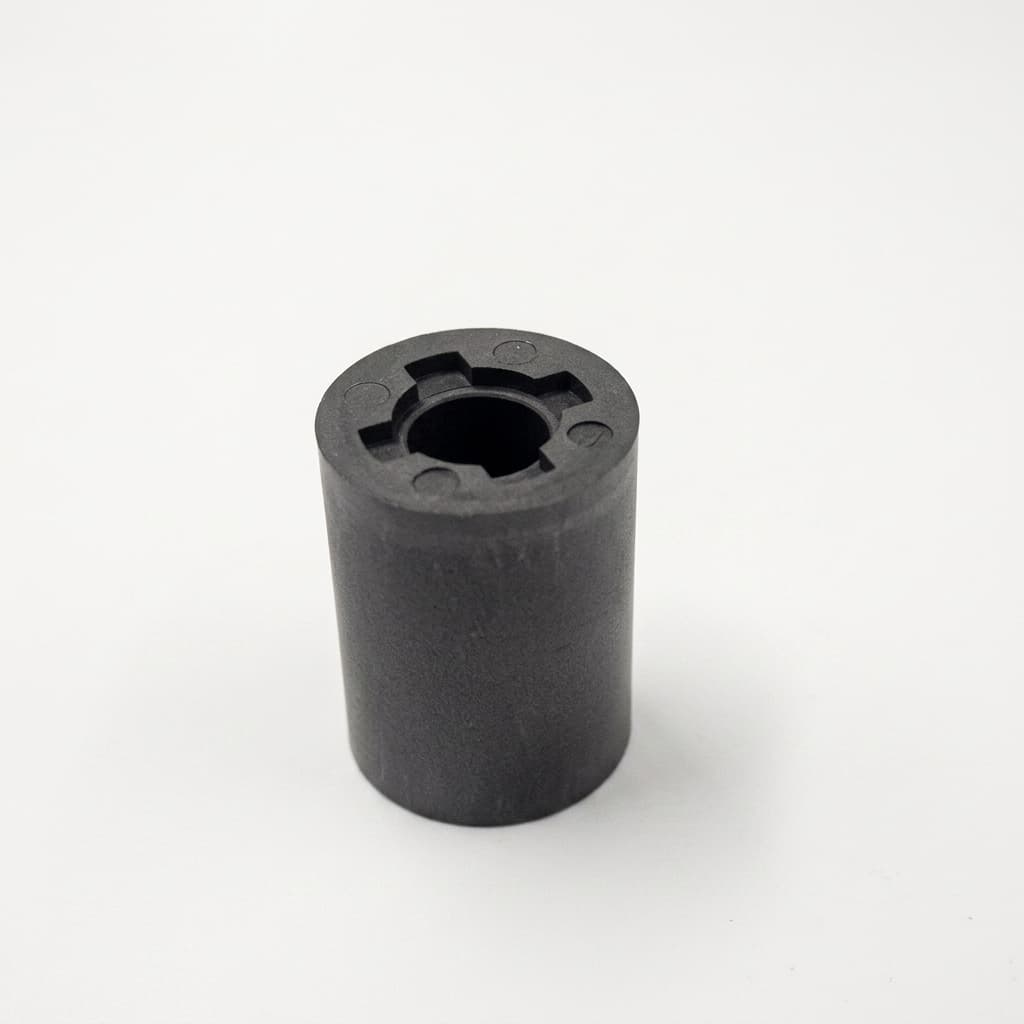

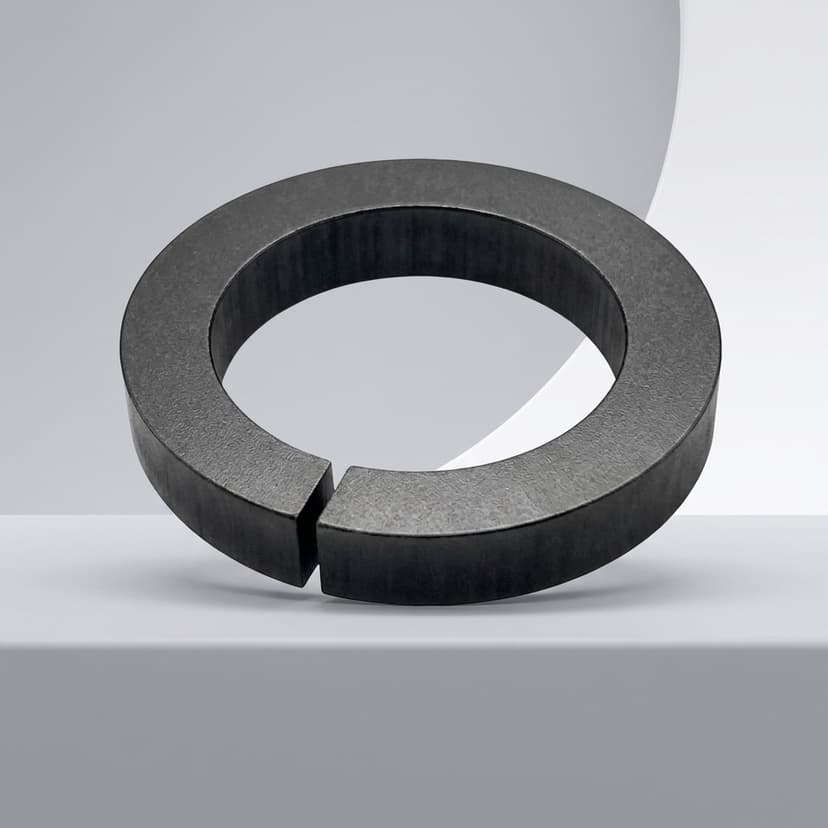

Magnetic Field Alignment Molding is most relevant when best for engineering teams pushing molded magnet output while still needing injection-molded geometry and production repeatability. Typical oem capability programs include Anisotropic ferrite rotors, High-output bonded NdFeB rings, and SmFeN multipole actuator rings, so the early review should confirm field direction, cavity orientation, powder alignment, and magnetization strategy.
Before sample tooling, align on 2D/3D drawing, material target, magnetic pattern, and sensing datum and operating temperature, vibration, media exposure, and lifetime requirement. The first acceptance check is alignment direction (Radial, axial, diametrical, or custom field orientation), because anisotropic compounds only deliver their advantage when the powder orientation matches the final magnetic function.
The main risk is brittle sintered magnet carried into a vibration-critical assembly; control it by review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety. Also review output gain target and magnetic pattern accepted without measurable criteria before moving from prototypes to repeat production.
| Program Metric | Typical Range | Procurement Value |
|---|---|---|
| Alignment direction | Radial, axial, diametrical, or custom field orientation | Anisotropic compounds only deliver their advantage when the powder orientation matches the final magnetic function. |
| Output gain target | Buyer-defined flux, torque, or sensor signal increase | Alignment adds process complexity, so the magnetic performance benefit must be measurable. |
No. Many use isotropic compounds and post-mold magnetization. Field alignment is reviewed when anisotropic material performance is needed.
Include 2D/3D drawing, material target, magnetic pattern, and sensing datum, operating temperature, vibration, media exposure, and lifetime requirement, and sample quantity, tooling target, annual forecast, destination, and PPAP needs. If the part is tied to automotive or safety-critical sensing, also include PPAP, traceability, and magnetic test expectations.
