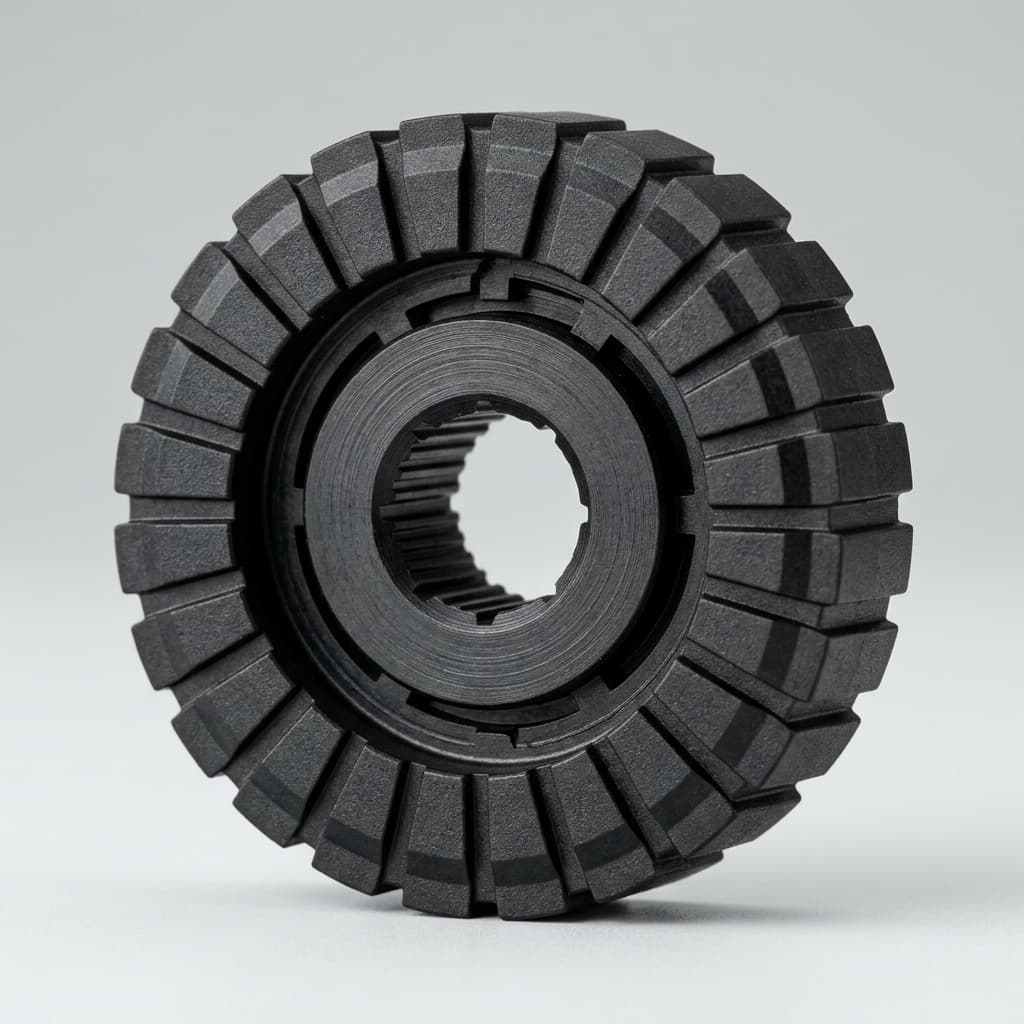

Chip-Free Molded Geometry
Injection molded magnet parts reduce brittle edge chipping while enabling complex rings, hubs, sleeves, and rotor shapes.
Injection molded magnets for OEM sensor and motor programs
Precision Injection Molded Magnets Manufacturer
Custom bonded NdFeB magnet factory supplying automotive sensors, EV actuators, and micro motors. We deliver chip-free molded magnets, PPS multi-pole rings, and insert-molded assemblies with Japanese tooling know-how and China-based manufacturing scale.
Inquiry Email
Include drawing, material, pole pattern, temperature, compliance, and PPAP needs.
Instant Chat
+8618857971991
Fast DFM triage for magnetic material, tooling, and validation questions.
Chip-Free Molded Magnets
Bonded magnet parts reduce brittle chipping and support complex geometry in one molded component.
Insert Molding
Overmold magnet material onto shafts, hubs, bushings, and carriers to remove glue joints.
Automotive Quality
Plan CTQ dimensions, flux targets, retention tests, and sample release evidence from the first RFQ.
Flagship Capabilities
Precision Engineered
Explore the core material, application, and validation paths for custom injection molded magnet programs.

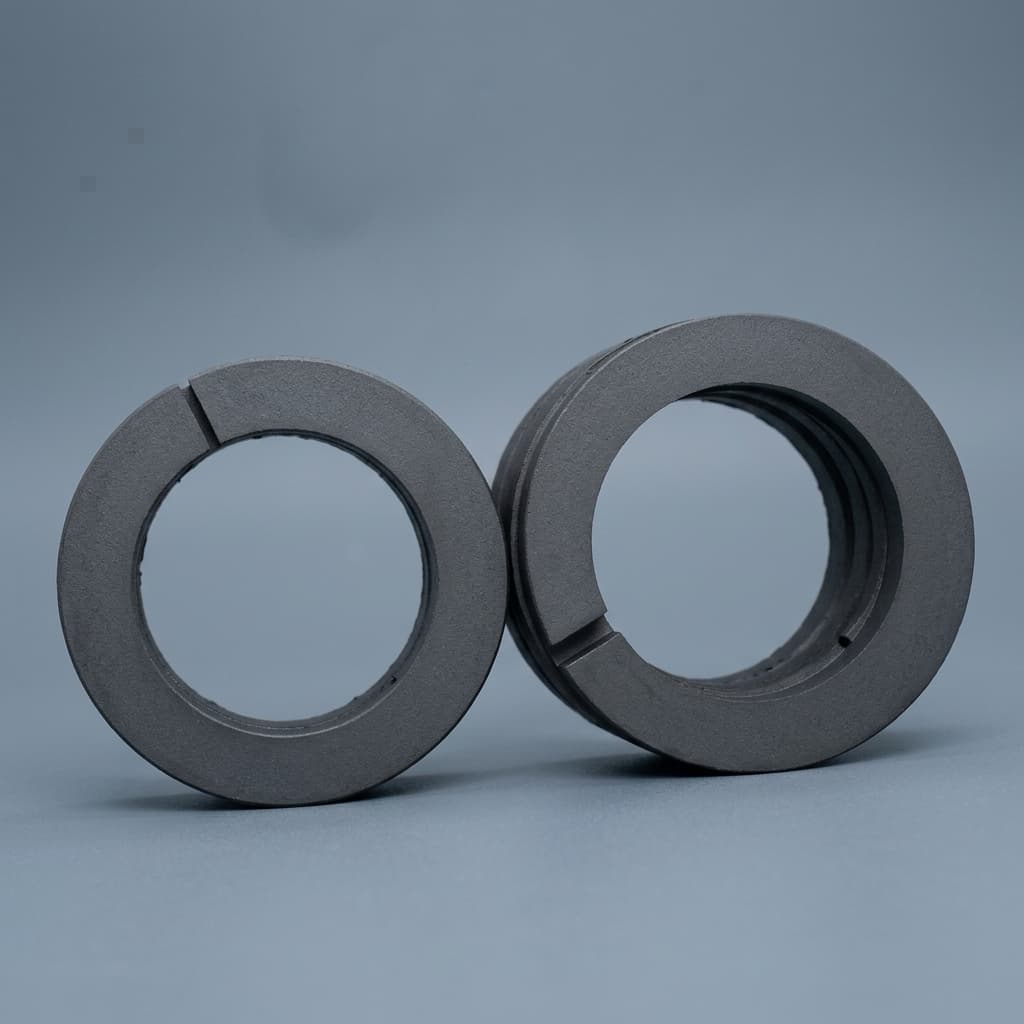

SmFeN Molded Magnets
Corrosion-aware rare-earth molded magnets for compact sensor and actuator programs.

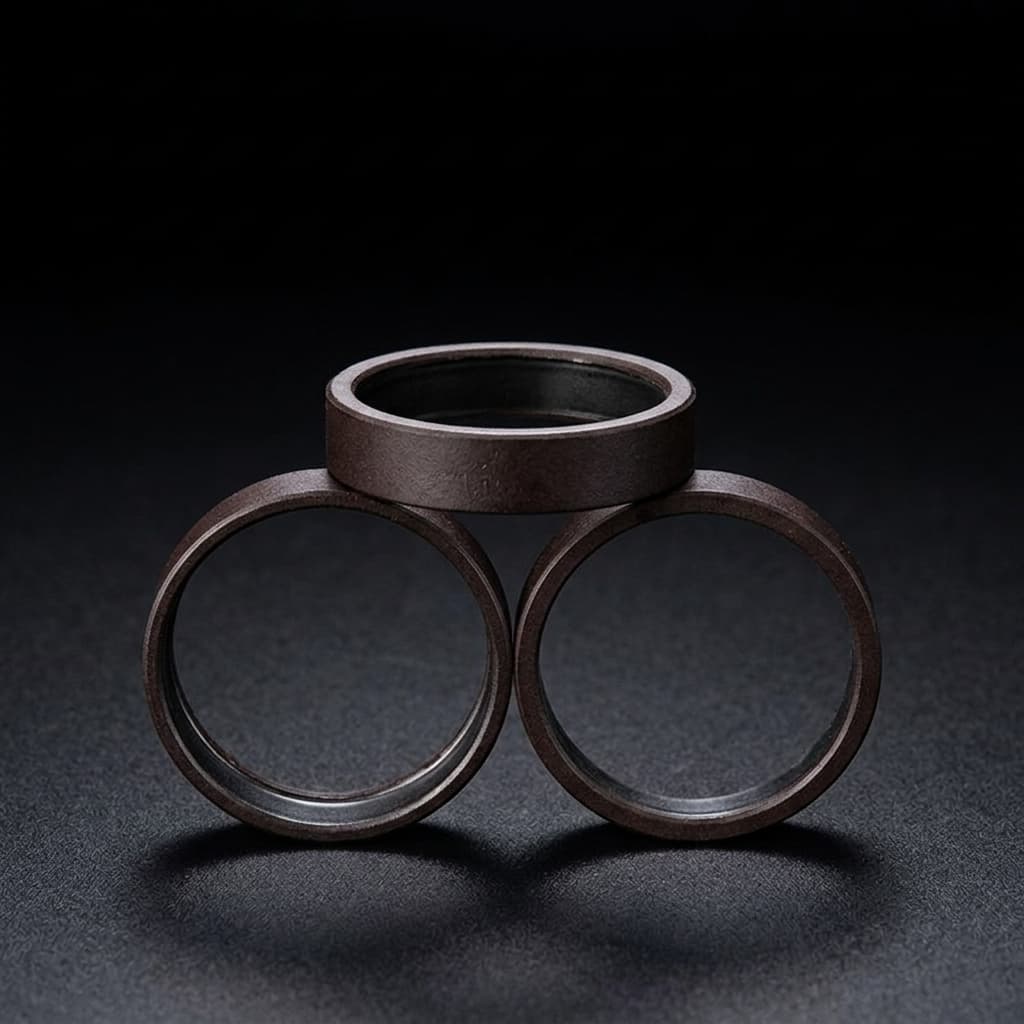

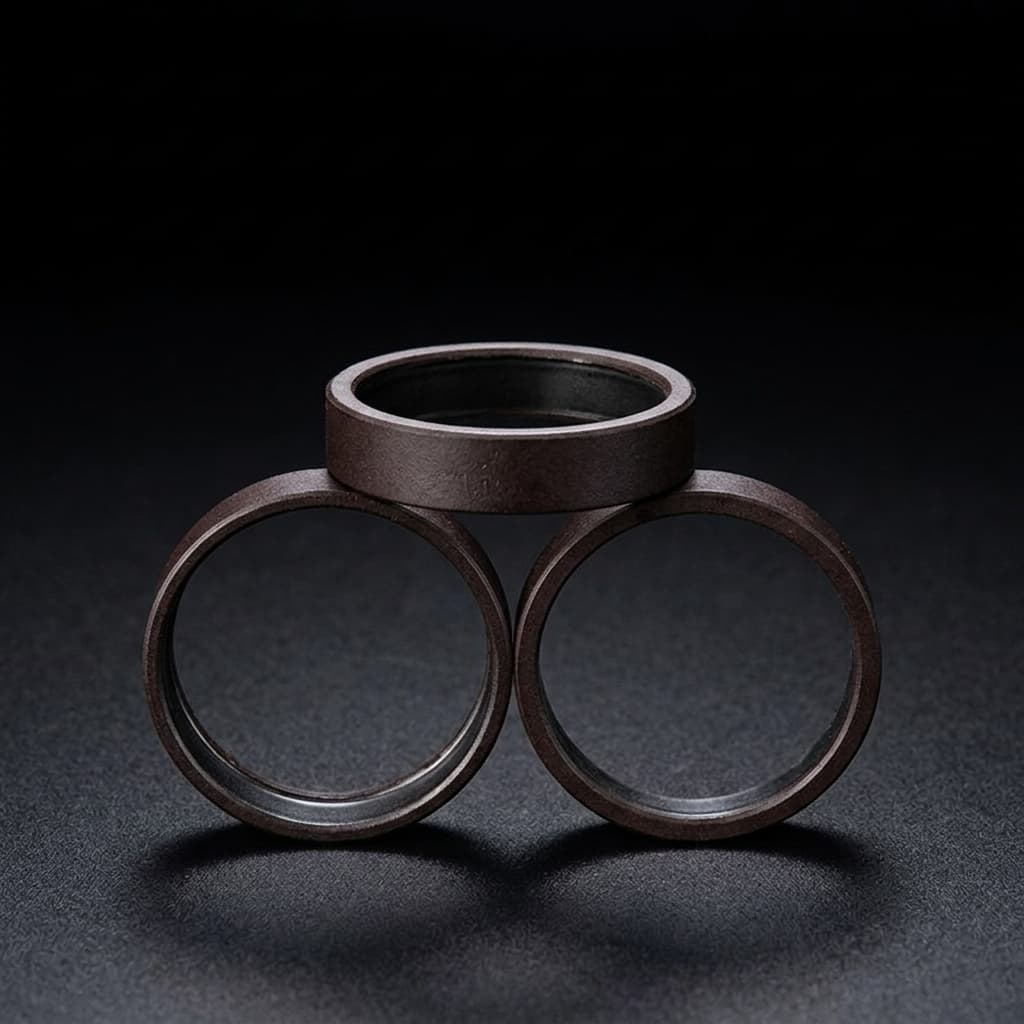

BLDC Motor Magnets
Bonded NdFeB, ferrite, and hybrid magnet rotors for compact brushless motor packages.

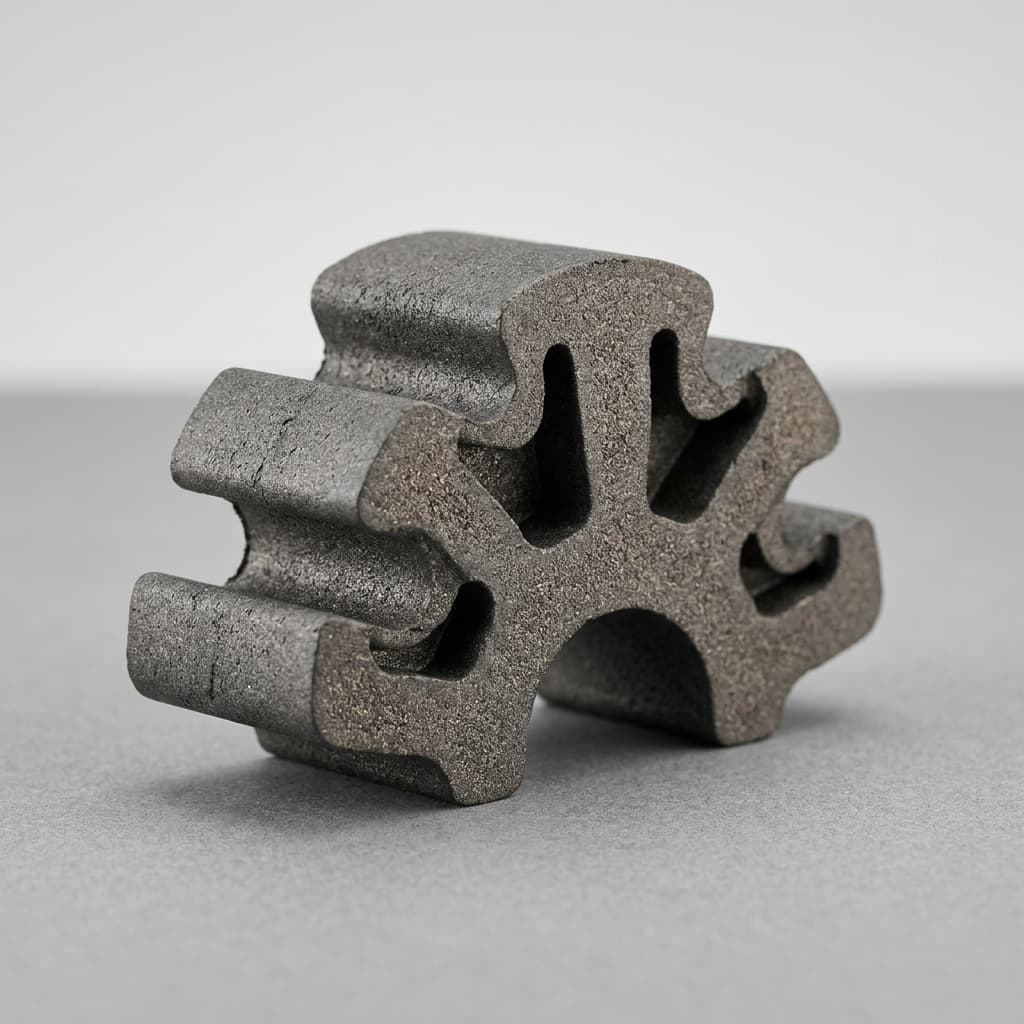

Material Grades
Compare NdFeB, ferrite, SmFeN, SmCo, hybrid compounds, PA, PPS, and PEEK binders.

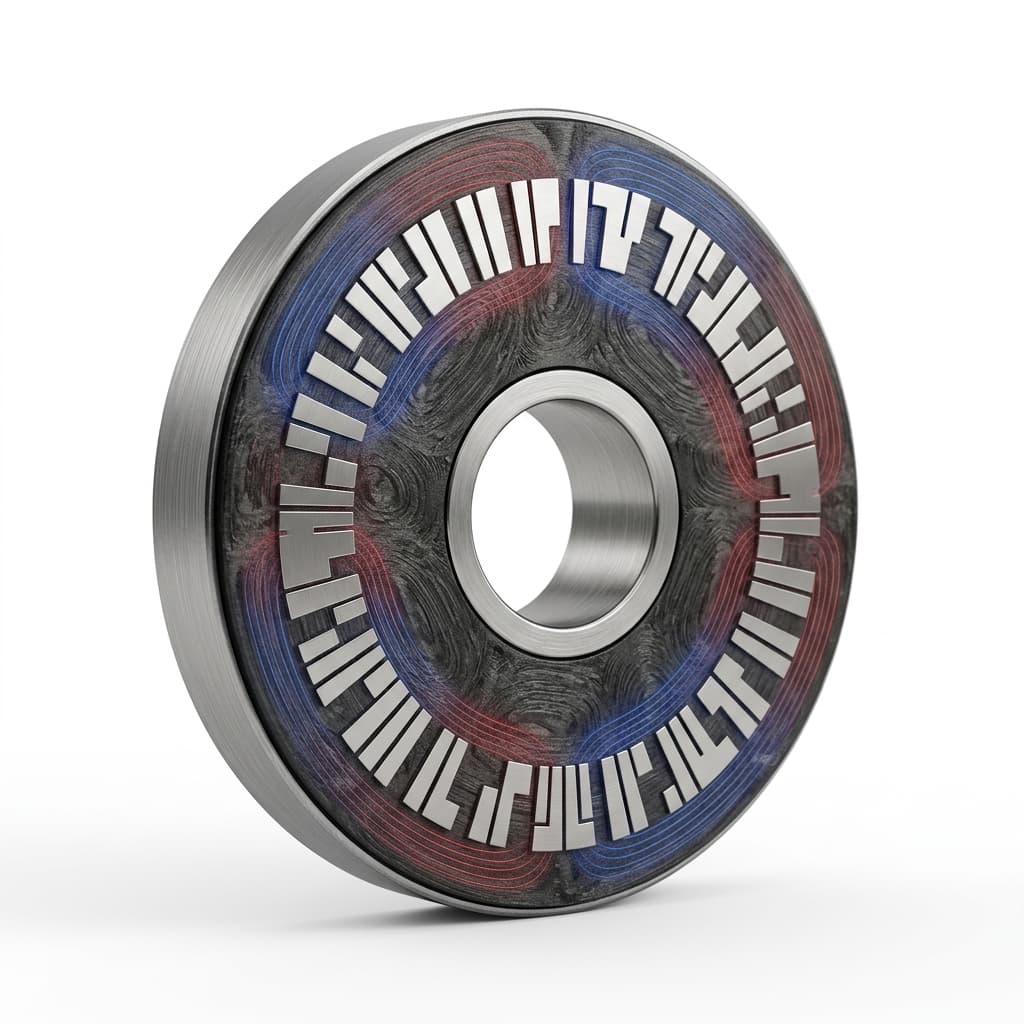

Magnetic Testing
Plan B-H review, field mapping, pole pitch checks, and functional sensor validation.
Bonded Magnet Capability Highlights
Built for automotive and micro motor OEM programs
Material, molding, magnetization, and quality support for custom injection molded magnet projects.
Insert Molding Integration
Overmold magnet material around steel shafts, brass inserts, plastic carriers, and custom hubs to reduce glue and assembly steps.
Multi-Pole Magnetization
Plan radial, diametrical, axial, and multi-pole magnetization with magnetic inspection tied to the final sensor or motor function.
Automotive Quality Mindset
Define CTQ dimensions, flux targets, insert retention, validation evidence, and PPAP-oriented documentation before sample release.
Capability Snapshot
Injection molded magnet focus areas
Quick view of the material, molding, magnetization, and RFQ support scope.
5 Families
Product Families
NRE / DFM
Tooling Programs
RFQ in 24h
RFQ Response
Step 1
Pick Magnet Family
Start from bonded NdFeB, bonded ferrite, molded ring, sensor rotor, or insert-molded assembly requirements.
Step 2
Validate by Application
Confirm the magnet against sensor air gap, motor rotor envelope, thermal cycling, vibration, and validation needs.
Step 3
Qualify Tooling Execution
Review DFM, insert retention, magnetization fixture, sample acceptance evidence, and PPAP-oriented documentation.
Injection Molded Magnet Selection Snapshot
This quick matrix helps sourcing and engineering teams compare major magnet options before opening a detailed RFQ thread.
| Family | Best Fit | Key Metric | Why It Matters |
|---|---|---|---|
| Injection Molded Magnets | Best for OEM teams replacing brittle sintered magnets or consolidating magnet, hub, and shaft features into a molded part. | Magnetic material system: Bonded NdFeB, bonded ferrite, PPS/PA/PEEK resin matrix | The powder and resin choice decides output, temperature capability, cost, and molding behavior. |
| Automotive Magnetic Sensor Rotors | Best for sensor engineers who need a rotor that is mechanically safe and magnetically repeatable under automotive validation. | Magnetic angle error: Project-defined by sensor architecture and air gap | Angle error is often the release gate for throttle, steering, and position-feedback applications. |
| Bonded NdFeB Magnets | Best for buyers who need stronger magnetic performance but still require molded shape control and chip-free handling. | Magnetic output target: Flux density or sensor curve defined by buyer test setup | Bonded NdFeB is selected when ferrite cannot meet signal or torque density in the available package. |
| PPS Bonded Ferrite Ring Magnets | Best for HVAC, EEV, and micro motor teams seeking stable multi-pole rings at production volume. | Pole count and magnetization consistency: Defined by motor design and torque ripple target | EEV and stepper motors depend on repeatable pole geometry for smooth actuation. |
| Insert Molded Magnet Assemblies | Best for programs where assembly alignment, adhesive reliability, or BOM reduction matters. | Insert retention: Pull-out or torque resistance target defined by assembly | The molded magnet must stay locked to the shaft or hub through vibration and thermal cycling. |
| Chip-Free Magnet Rotors | Best for engineering teams resolving field failures caused by fractured sintered magnets or seeking to derisk a new sensor design. | Impact and vibration survivability: Passes standard automotive multi-axis vibration testing without edge mass loss | A single microscopic magnetic chip can lock a micro motor or distort a Hall sensor signal permanently. |
| Bonded NdFeB PPS Magnets | Best for material engineers who need rare-earth magnetic strength but cannot compromise on chemical and heat resistance. | Continuous operating temperature: 150°C to 180°C (depending on specific NdFeB powder and PPS grade) | PPS ensures the molded geometry does not deform, while the specified NdFeB powder ensures the magnetic field does not permanently demagnetize at heat. |
| SmFeN Injection Molded Magnets | Best for engineers comparing bonded NdFeB, ferrite, and SmFeN when corrosion risk, demagnetization margin, and molded geometry must be balanced. | Material selection window: SmFeN, bonded NdFeB, ferrite, or hybrid review | SmFeN is selected for a specific balance of rare-earth output, corrosion resistance, and molded part reliability. |
| Injection Molded Ferrite Magnets | Best for OEM teams that need molded geometry and stable cost more than rare-earth magnetic density. | Ferrite grade family: BIF-style isotropic or anisotropic ferrite compounds | The grade decides magnetic output, moldability, cost, and whether the design can avoid rare-earth material exposure. |
| Injection Molded Magnet Material Grades | Best for material engineers and sourcing teams who need a clear grade-selection path before sending drawings for quotation. | Rare-earth grade family: BIN-11, BIN-12, BIN-33 style bonded NdFeB or SmFeN review | The grade family sets the magnetic ceiling and demagnetization margin before the resin and geometry are optimized. |
| Injection Molded SmCo Magnets | Best for teams reviewing a molded alternative to brittle high-temperature magnetic parts in demanding environments. | Temperature stability: Project-defined continuous and peak temperature window | SmCo is reviewed when magnetic stability at elevated temperature is a release gate. |
| Hybrid Injection Molded Magnets | Best for value engineering teams that need more output than ferrite but cannot accept full rare-earth cost, supply, or corrosion assumptions. | Blend objective: Cost reduction, corrosion margin, output increase, or demag risk reduction | A hybrid magnet only makes sense when the tradeoff target is explicit and measurable. |
Knowledge Base
Latest Engineering Guides
Practical buyer-side checklists, decision frameworks, and technical insights from our OEM engineering team.
EngineeringBuyer GuidesProduct Engineering
EU CRMA Compliance 2026: Sourcing Strategies for Injection Molded NdFeB Magnets
Meet EU CRMA 2026 deadlines for permanent magnets. See sourcing, DPP data, and injection molded NdFeB checks to reduce rare-earth compliance risk.
EngineeringProduct Engineering
Injection Molded vs. Compression Bonded Magnets: A Procurement and Engineering Guide
Injection molded vs. compression bonded magnets: compare BHmax, tooling, binders, geometry limits, coating risk, and request a DFM review for OEM programs.
EngineeringProduct Engineering
Injection Molded Magnet Tolerances: How to Specify Net-Shape Precision Without Cost Overruns
Injection molded magnet tolerances explained: compare standard vs. precision limits, avoid drawing over-specification, and request a DFM review before RFQ.
FAQ
RFQ and Procurement Support
Start Your Injection Molded Magnet RFQ
Share your drawing, magnetic pattern, insert details, environment, and volume plan to receive practical engineering feedback and quotation support.
Inquiry Email
Include drawing, material, pole pattern, temperature, compliance, and PPAP needs.
Instant Chat
+8618857971991
Fast DFM triage for magnetic material, tooling, and validation questions.
Buyer Quick Start: From RFQ to Mass Production
If your team is evaluating injection molded magnet suppliers, start with a workflow that combines material fit, molded geometry, magnetic acceptance criteria, tooling planning, and delivery timing in one track.
- Shortlist magnet architecture by application, environment, magnetic pattern, and insert requirements.
- Define dimensional, magnetic, visual, and retention acceptance thresholds before tooling release.
- Align CTQ records, sample timing, packaging, and shipment milestones before PO release.
Recommended Navigation for New Buyers
| Decision Stage | Best Page | What You Gain |
|---|---|---|
| Architecture fit | Products | Compare product families, integration options, and RFQ input requirements. |
| Application risk | Solutions / Applications | Review scenario-based risk controls and measurable validation checkpoints. |
| Reference research | Engineering Blog | Review buyer-side checklists, sourcing methods, and design notes before freezing specs. |
| Commercial baseline | About | Understand team profile, process capability, and cooperation model before shortlisting a supplier. |
| Supplier execution | OEM Capabilities | Understand DFM, prototype control, quality records, and export delivery governance. |
| Execution start | Contact / RFQ | Use the inquiry checklist to reduce quote loops and get a faster actionable response. |
For deeper decision support, review our engineering blog where each post includes practical buyer-side checklists.
