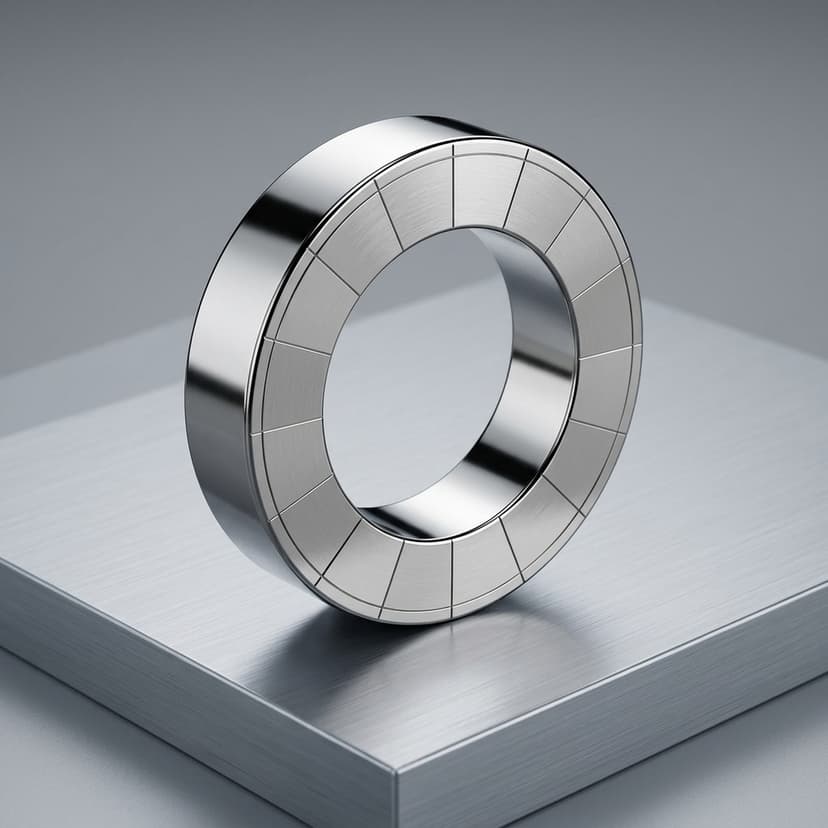

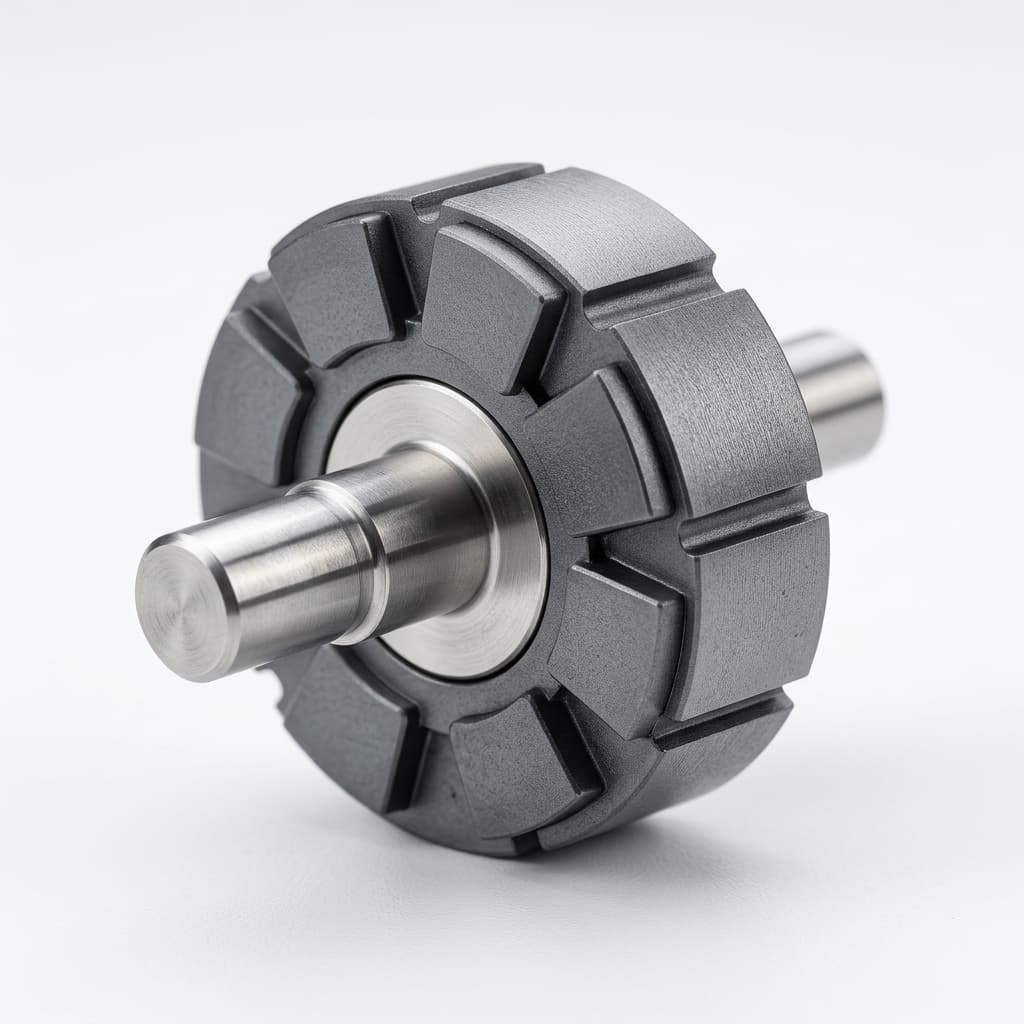

EEV Stepper Motor Magnet Rotors

PPS bonded ferrite multi-pole rotors for electronic expansion valves and HVAC stepper motor programs.

Target Buyer:Best for HVAC and valve manufacturers moving from prototype rotor sourcing to production supply.

Solution Highlights

Cost-optimized multi-pole bonded ferrite rotor supply
PPS stability for HVAC temperature and refrigerant-adjacent environments
Support for rotor drawing, pole count, and motor torque validation

Common Use Cases

Electronic expansion valves
HVAC actuators
Refrigerant valve motors

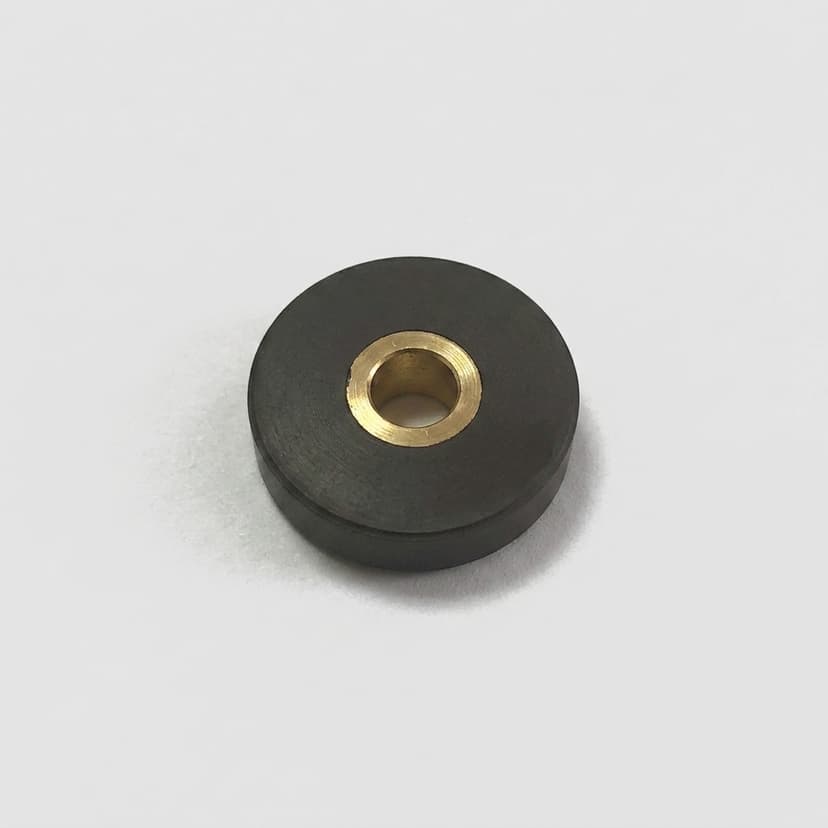

Compact stepper motor magnet rotors

Implementation Focus

Pole count and magnetization fixture planning
Rotor balance and dimensional stability
Batch consistency for high-volume EEV production

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Motor torque consistency	Validated in buyer motor or agreed sample test fixture	Valve actuation depends on repeatable rotor magnetic pattern and stable molded dimensions.

RFQ Preparation Checklist

2D/3D drawing, material target, magnetic pattern, and sensing datum
Operating temperature, vibration, media exposure, and lifetime requirement
Sample quantity, tooling target, annual forecast, destination, and PPAP needs
Motor drawing, stator design assumptions, pole count, and torque target

Risk and Mitigation

Brittle sintered magnet carried into a vibration-critical assembly: Review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety.
Magnetic pattern accepted without measurable criteria: Define flux density, pole count, angle error, sensing radius, concentricity, and inspection method before sample tooling.

Buyer FAQ

Can you quote EEV rotor magnets from a motor drawing?

Yes. A rotor drawing, pole count, material target, sample quantity, and annual forecast are enough to start manufacturability review.
