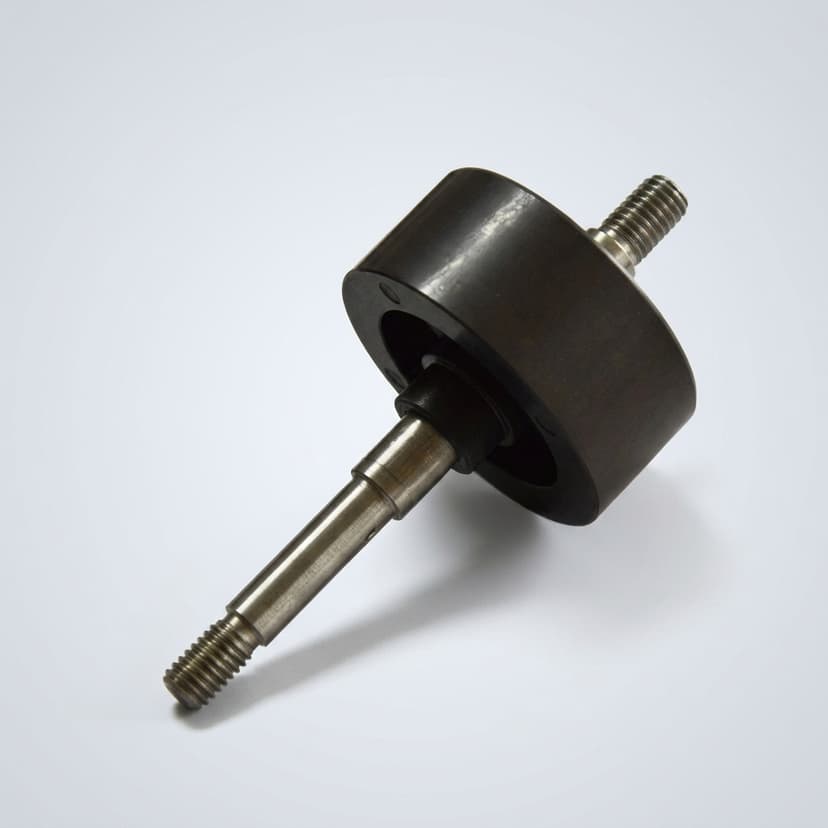

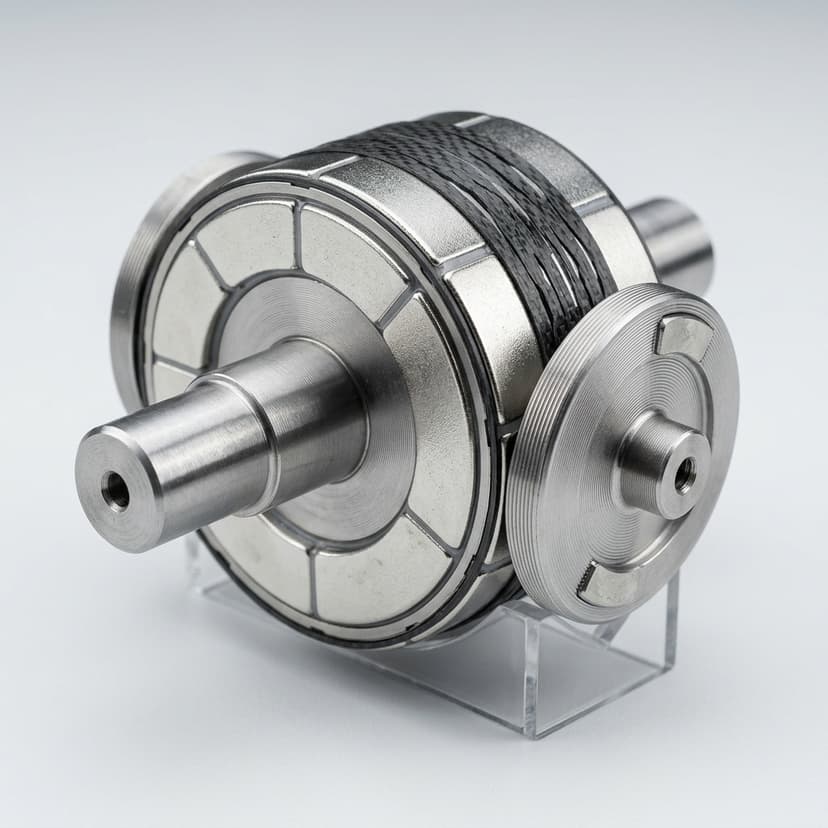

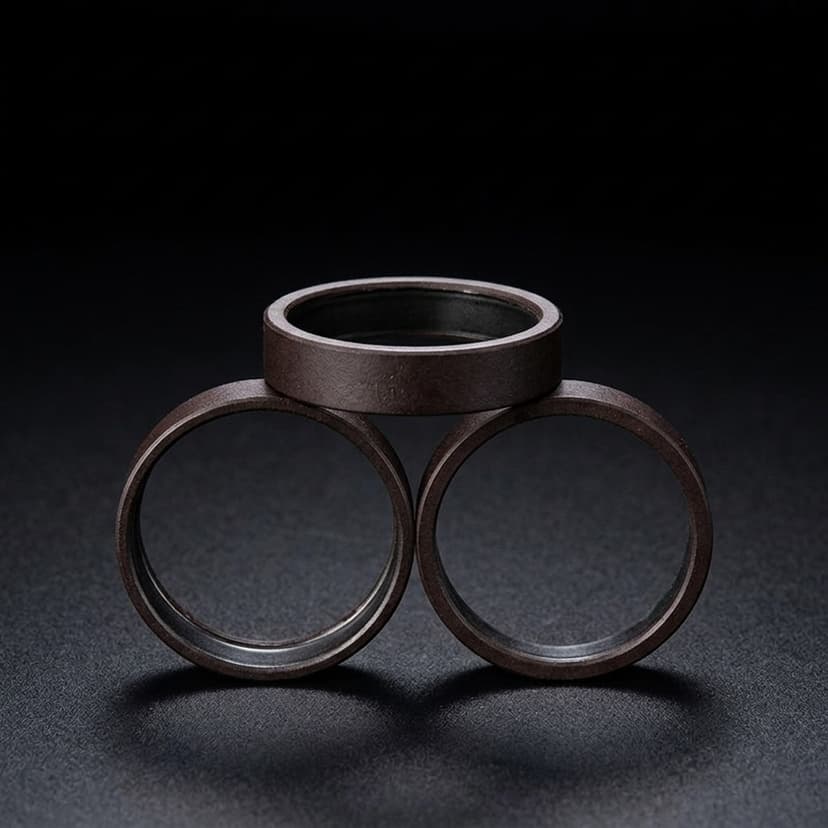

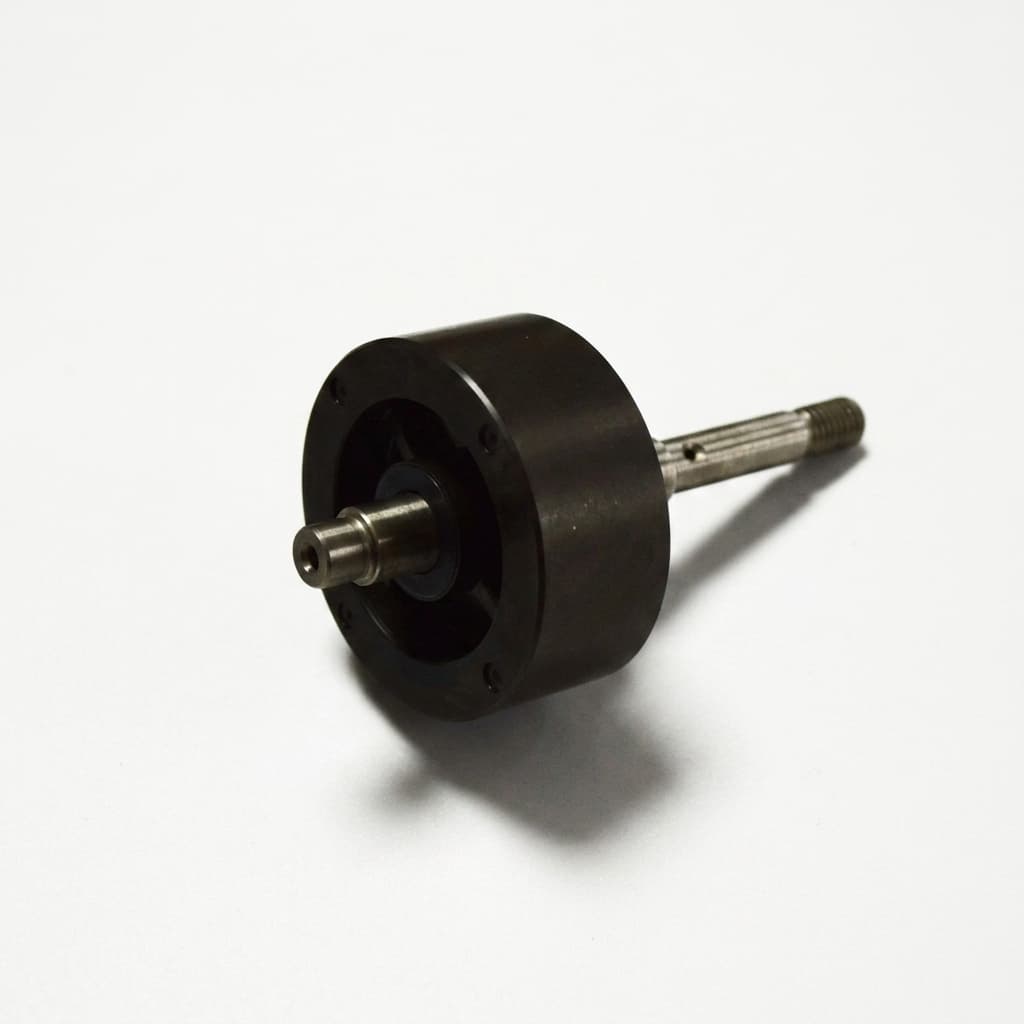

Bonded NdFeB, ferrite, and hybrid injection molded magnet rotors for compact BLDC motors, pumps, and actuator drives.
BLDC Motor Magnet Rotors is most relevant when best for motor teams that need a custom magnet rotor with stable pole geometry, controlled runout, and production supply support. Typical solution programs include Automotive pumps, Small BLDC drives, and Robotics actuators, so the early review should confirm torque target, speed, rotor inertia, balance, and air-gap stack-up.
Before sample tooling, align on 2D/3D drawing, material target, magnetic pattern, and sensing datum and operating temperature, vibration, media exposure, and lifetime requirement. The first acceptance check is torque ripple target (Defined by motor control and application noise limits), because the magnet pole profile and rotor concentricity directly affect vibration, sound, and efficiency.
The main risk is brittle sintered magnet carried into a vibration-critical assembly; control it by review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety. Also review rotor mechanical stability and magnetic pattern accepted without measurable criteria before moving from prototypes to repeat production.
| Evaluation Metric | Typical Range | Buyer Relevance |
|---|---|---|
| Torque ripple target | Defined by motor control and application noise limits | The magnet pole profile and rotor concentricity directly affect vibration, sound, and efficiency. |
| Rotor mechanical stability | Runout, balance, burst speed, and retention by project | A BLDC rotor is a rotating mechanical part, not only a magnetic material sample. |
Yes, especially when the BLDC design benefits from multipole molded geometry, insert integration, cost control, or non-brittle rotor handling.
Include 2D/3D drawing, material target, magnetic pattern, and sensing datum, operating temperature, vibration, media exposure, and lifetime requirement, and sample quantity, tooling target, annual forecast, destination, and PPAP needs. If the part is tied to automotive or safety-critical sensing, also include PPAP, traceability, and magnetic test expectations.
