Rare-earth bonded NdFeB magnet components for compact rotors and sensing parts that need stronger output than ferrite.

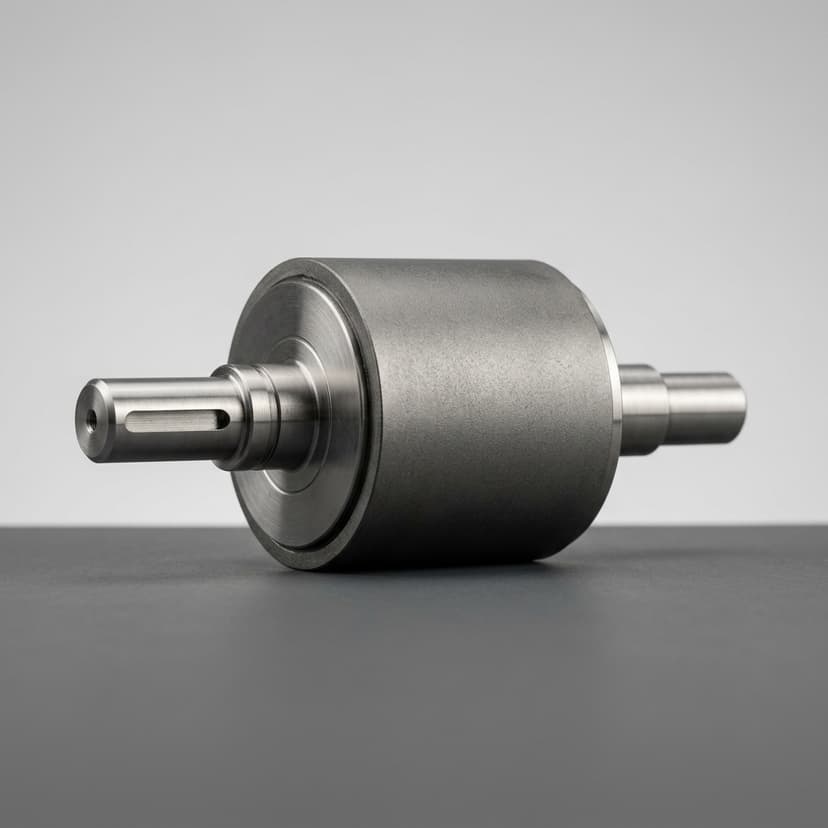

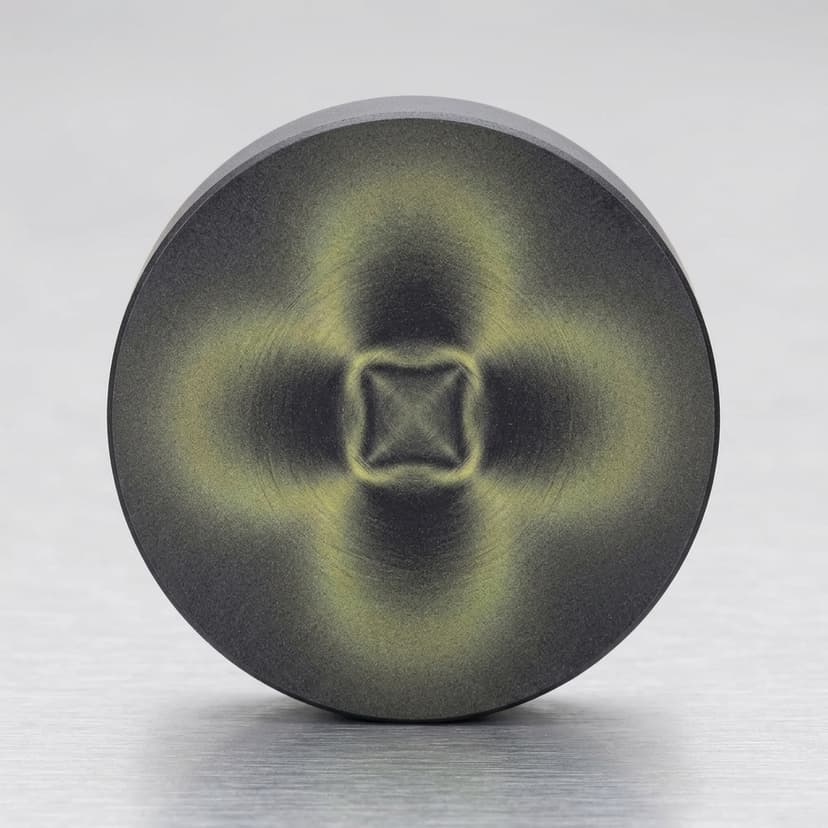

Bonded NdFeB Magnets is most relevant when best for buyers who need stronger magnetic performance but still require molded shape control and chip-free handling. Typical product programs include Compact motor rotors, EV sensor modules, and Encoder rings, so the early review should confirm magnetic output versus resin loading and mechanical strength.
Before sample tooling, align on 2D/3D drawing, material target, magnetic pattern, and sensing datum and operating temperature, vibration, media exposure, and lifetime requirement. The first acceptance check is magnetic output target (Flux density or sensor curve defined by buyer test setup), because bonded NdFeB is selected when ferrite cannot meet signal or torque density in the available package.
The main risk is brittle sintered magnet carried into a vibration-critical assembly; control it by review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety. Also review validation handoff and magnetic pattern accepted without measurable criteria before moving from prototypes to repeat production.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Magnetic output target | Flux density or sensor curve defined by buyer test setup | Bonded NdFeB is selected when ferrite cannot meet signal or torque density in the available package. |
| Validation handoff | Operating temperature, vibration, media exposure, and lifetime requirement | It connects Bonded NdFeB Magnets design intent to sample approval, lot inspection, and production sourcing decisions. |
No. Bonded NdFeB normally has lower energy density than sintered NdFeB, but it enables molded shape complexity, crack resistance, and multi-pole production advantages.
Include 2D/3D drawing, material target, magnetic pattern, and sensing datum, operating temperature, vibration, media exposure, and lifetime requirement, and sample quantity, tooling target, annual forecast, destination, and PPAP needs. If the part is tied to automotive or safety-critical sensing, also include PPAP, traceability, and magnetic test expectations.
Inquiry Email
Include drawing, material, pole pattern, temperature, compliance, and PPAP needs.
