Injection Molded Magnets

Custom injection molded magnets for chip-free, complex, high-volume automotive and industrial sensing assemblies.

Target Buyer:Best for OEM teams replacing brittle sintered magnets or consolidating magnet, hub, and shaft features into a molded part.

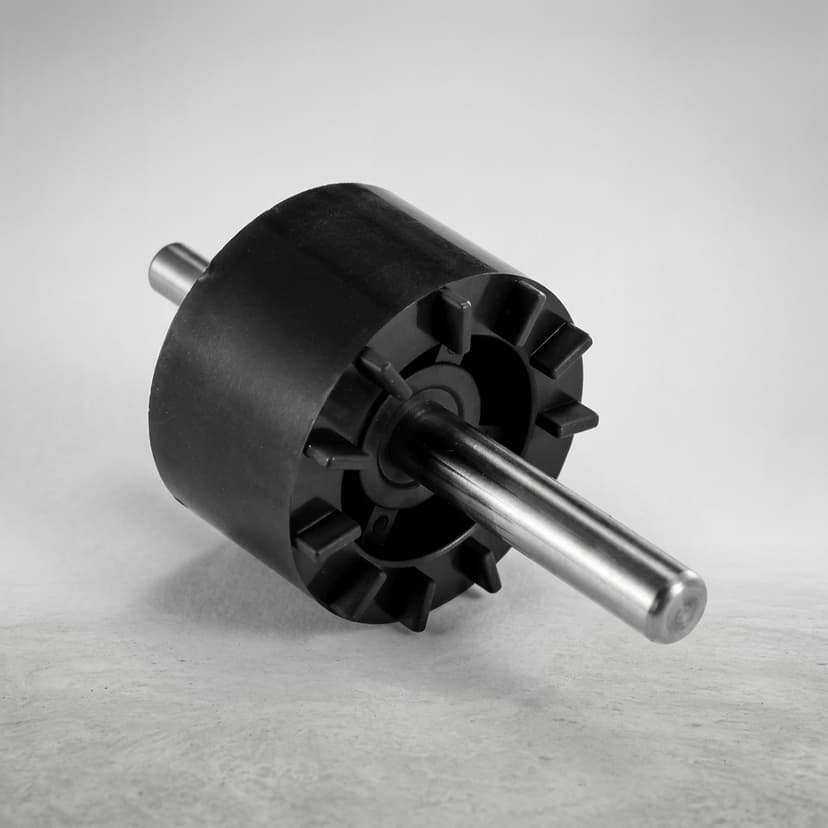

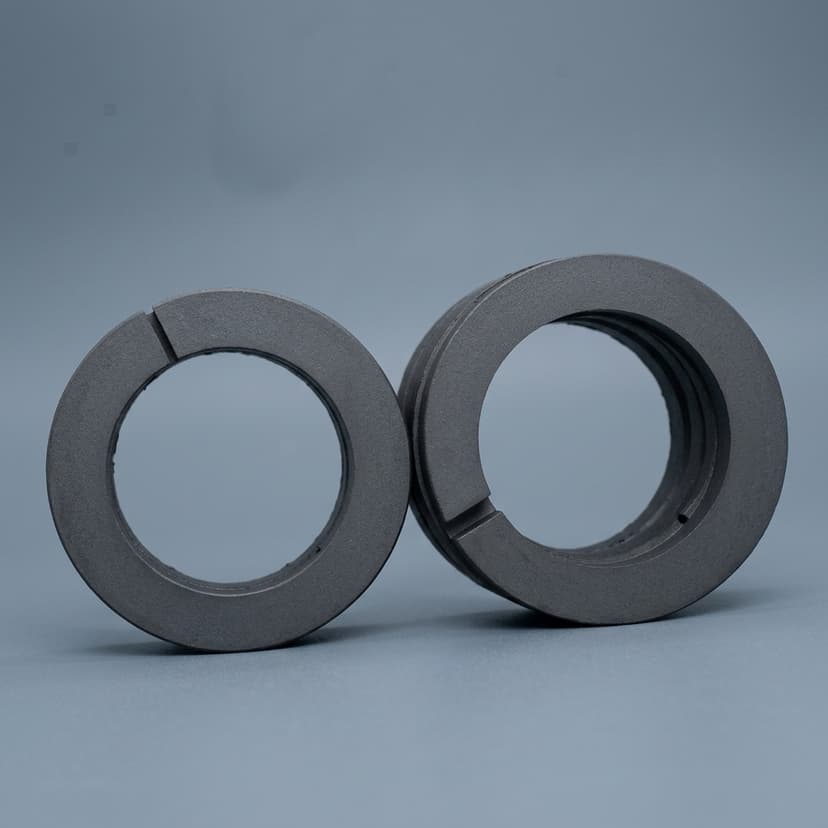

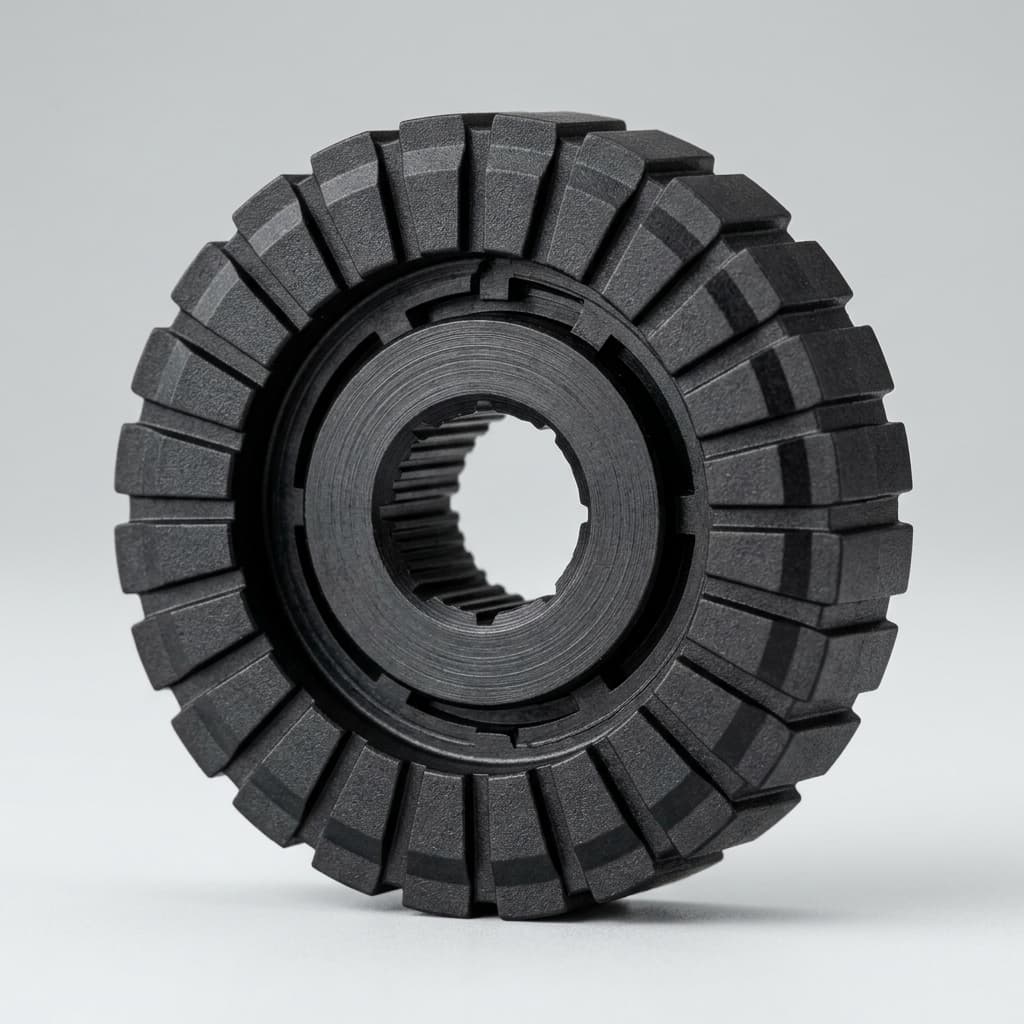

Injection molded bonded magnet component

Capability Highlights

Bonded NdFeB or ferrite powder in PPS, PA, PEEK, or project-specific resin
Complex molded shapes that reduce grinding, gluing, and secondary assembly
Designed for vibration, thermal cycling, and repeatable magnetic output

Typical Applications

Automotive sensors
EV actuators
Micro motors
HVAC valves

Engineering Focus

Material balance between magnetic output, resin temperature rating, and dimensional stability
Gate location, shrinkage, flash control, and magnetic powder orientation risk
Post-mold magnetization and inspection plan

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Magnetic material system	Bonded NdFeB, bonded ferrite, PPS/PA/PEEK resin matrix	The powder and resin choice decides output, temperature capability, cost, and molding behavior.
Dimensional tolerance	Defined by molded datum, insert interface, and sensing surface	Sensor air gap and motor rotor balance depend on molded geometry staying repeatable at production scale.

RFQ Checklist

2D/3D drawing, material target, magnetic pattern, and sensing datum
Operating temperature, vibration, media exposure, and lifetime requirement
Sample quantity, tooling target, annual forecast, destination, and PPAP needs

Risk Controls

Brittle sintered magnet carried into a vibration-critical assembly: Review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety.
Magnetic pattern accepted without measurable criteria: Define flux density, pole count, angle error, sensing radius, concentricity, and inspection method before sample tooling.

Buyer FAQ

When should injection molded magnets replace sintered magnets?

Use injection molded magnets when chipping, assembly damage, complex geometry, insert molding, or multi-pole production repeatability matters more than maximum magnetic energy density.
