Material-grade and binder selection guide for bonded NdFeB, ferrite, SmFeN, SmCo, PA, PPS, and high-temperature molded magnet programs.
Injection Molded Magnet Material Grades is most relevant when best for material engineers and sourcing teams who need a clear grade-selection path before sending drawings for quotation. Typical product programs include Material substitution studies, Automotive sensor RFQs, and Motor rotor design reviews, so the early review should confirm magnetic output, temperature, moisture, chemical exposure, and dimensional stability tradeoffs.
Before sample tooling, align on 2D/3D drawing, material target, magnetic pattern, and sensing datum and operating temperature, vibration, media exposure, and lifetime requirement. The first acceptance check is rare-earth grade family (BIN-11, BIN-12, BIN-33 style bonded NdFeB or SmFeN review), because the grade family sets the magnetic ceiling and demagnetization margin before the resin and geometry are optimized.
The main risk is brittle sintered magnet carried into a vibration-critical assembly; control it by review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety. Also review ferrite grade family and magnetic pattern accepted without measurable criteria before moving from prototypes to repeat production.
| Metric | Typical Range | Why It Matters |
|---|---|---|

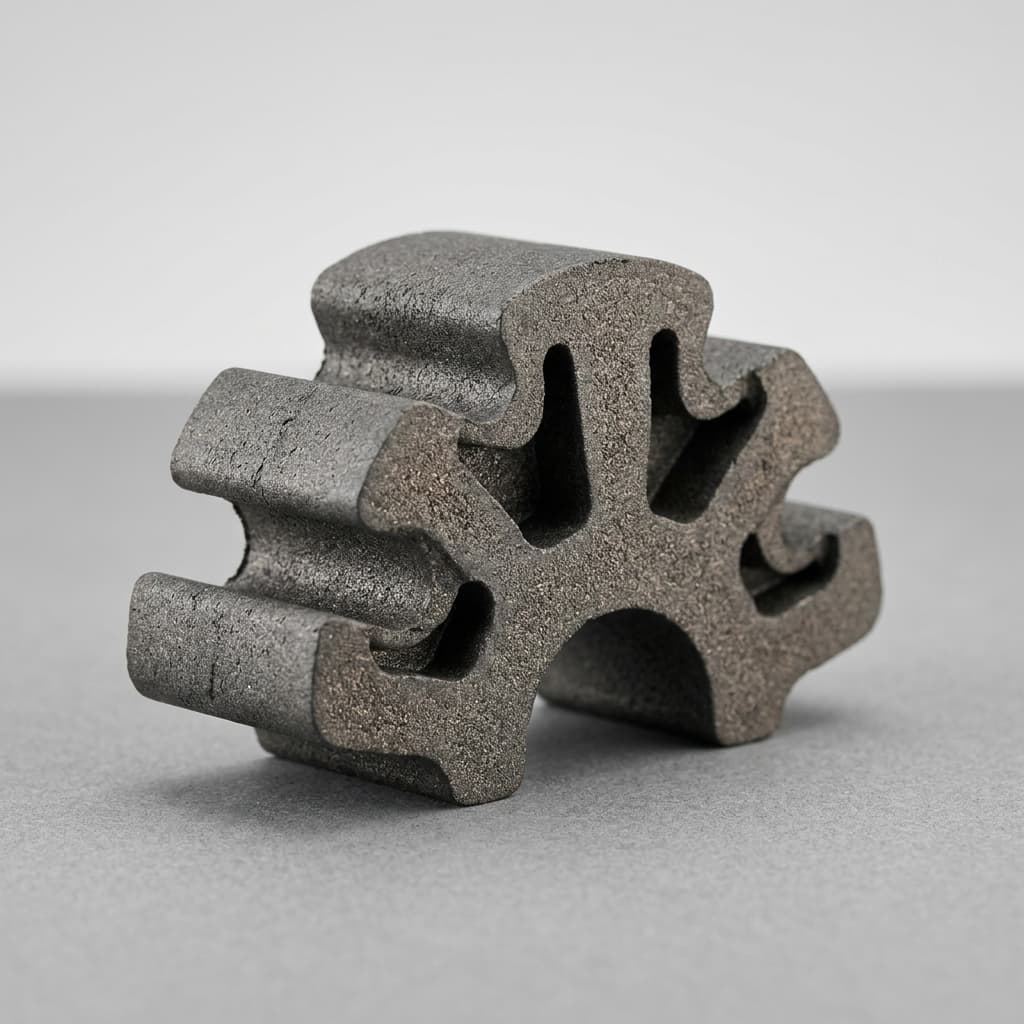

| Rare-earth grade family | BIN-11, BIN-12, BIN-33 style bonded NdFeB or SmFeN review | The grade family sets the magnetic ceiling and demagnetization margin before the resin and geometry are optimized. |

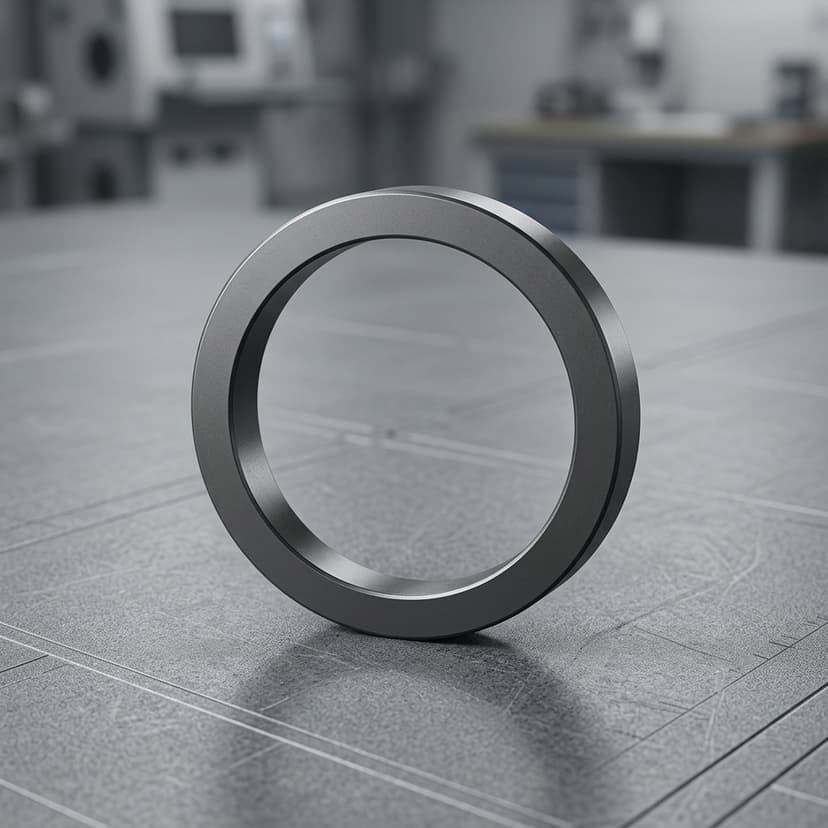

| Ferrite grade family | BIF-4, BIF-12, BIF-16 style ferrite compounds | Ferrite grade selection controls cost, pole strength, and motor or sensor feasibility in high-volume designs. |
| Binder system | PA6, PA12, PPS, PEEK, or project-specific resin | The binder can decide moisture absorption, continuous temperature, chemical resistance, and molded tolerance stability. |
A preliminary material review is possible, but production quotation still needs geometry, pole pattern, tolerance, and application environment.
Include 2D/3D drawing, material target, magnetic pattern, and sensing datum, operating temperature, vibration, media exposure, and lifetime requirement, and sample quantity, tooling target, annual forecast, destination, and PPAP needs. If the part is tied to automotive or safety-critical sensing, also include PPAP, traceability, and magnetic test expectations.
