Cost-stable injection molded ferrite magnets for multipole rings, sensors, pump rotors, and high-volume actuator programs.
Injection Molded Ferrite Magnets is most relevant when best for OEM teams that need molded geometry and stable cost more than rare-earth magnetic density. Typical product programs include BLDC and stepper motor rings, Water pump impeller magnets, and HVAC valve actuators, so the early review should confirm ferrite grade and binder selection by pole count, wall thickness, and temperature.
Before sample tooling, align on 2D/3D drawing, material target, magnetic pattern, and sensing datum and operating temperature, vibration, media exposure, and lifetime requirement. The first acceptance check is ferrite grade family (BIF-style isotropic or anisotropic ferrite compounds), because the grade decides magnetic output, moldability, cost, and whether the design can avoid rare-earth material exposure.
The main risk is brittle sintered magnet carried into a vibration-critical assembly; control it by review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety. Also review pole count and magnetic pattern accepted without measurable criteria before moving from prototypes to repeat production.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Ferrite grade family | BIF-style isotropic or anisotropic ferrite compounds | The grade decides magnetic output, moldability, cost, and whether the design can avoid rare-earth material exposure. |

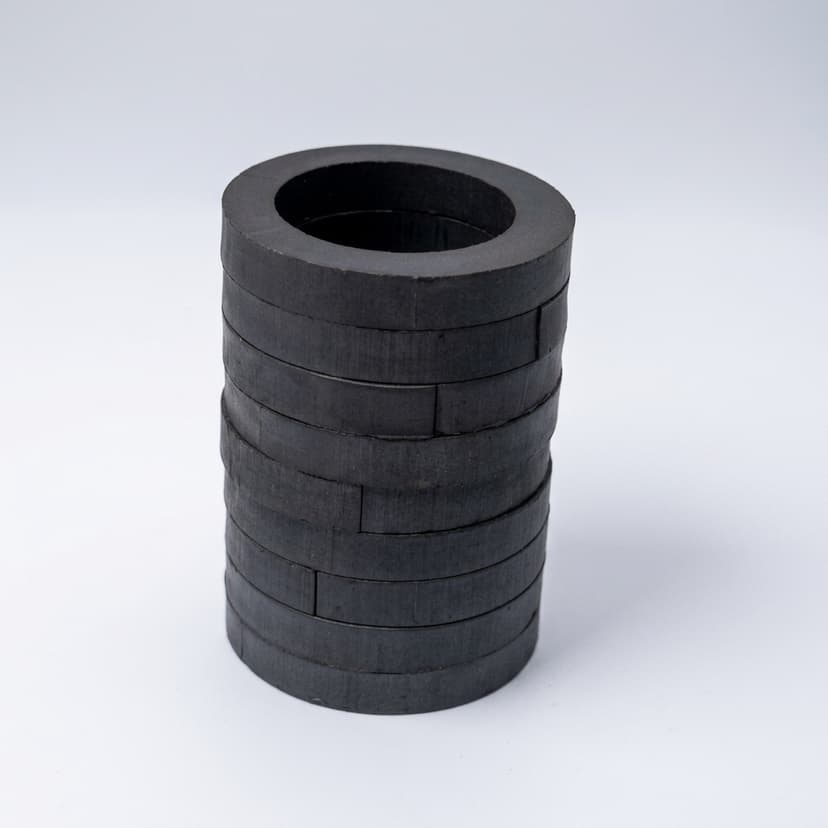

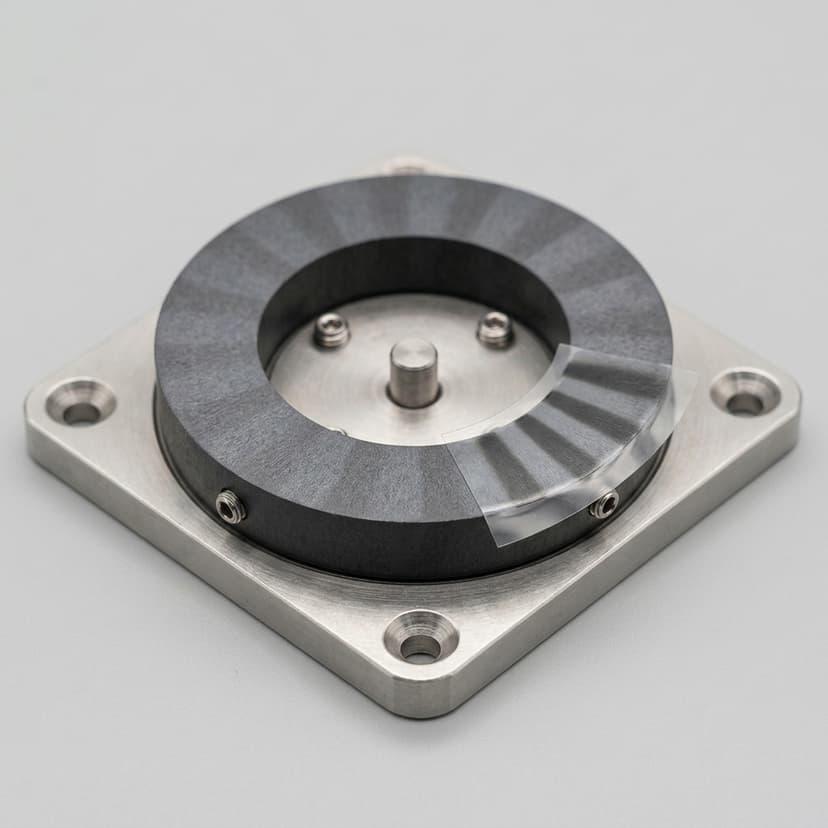

| Pole count | Application-defined multipole ring or rotor pattern | Ferrite molded rings are often chosen because many poles can be produced repeatably without fragile sintered segments. |

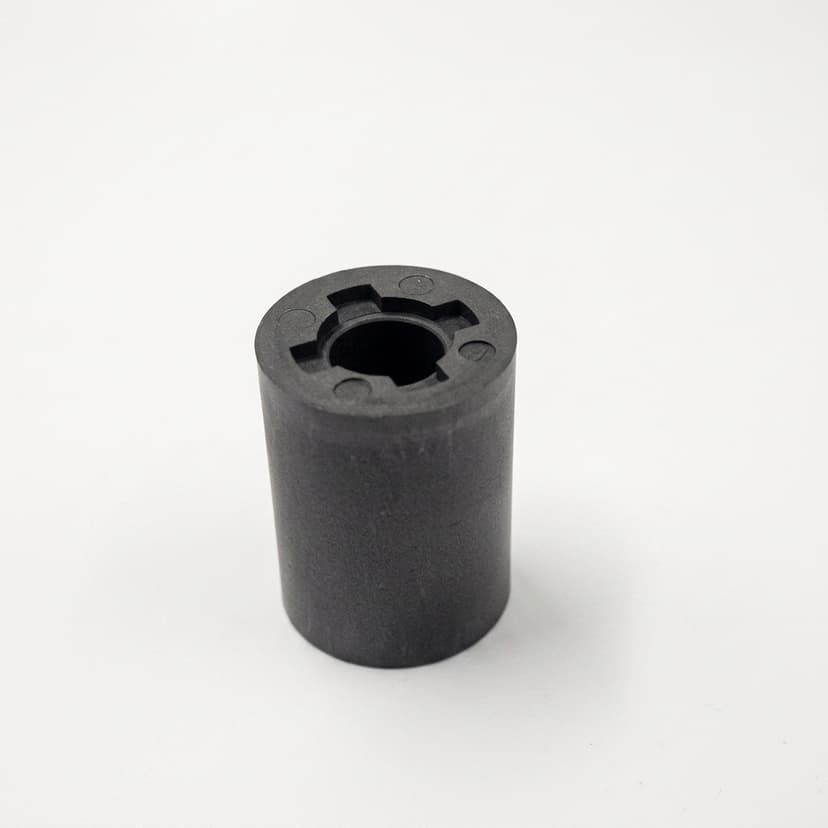

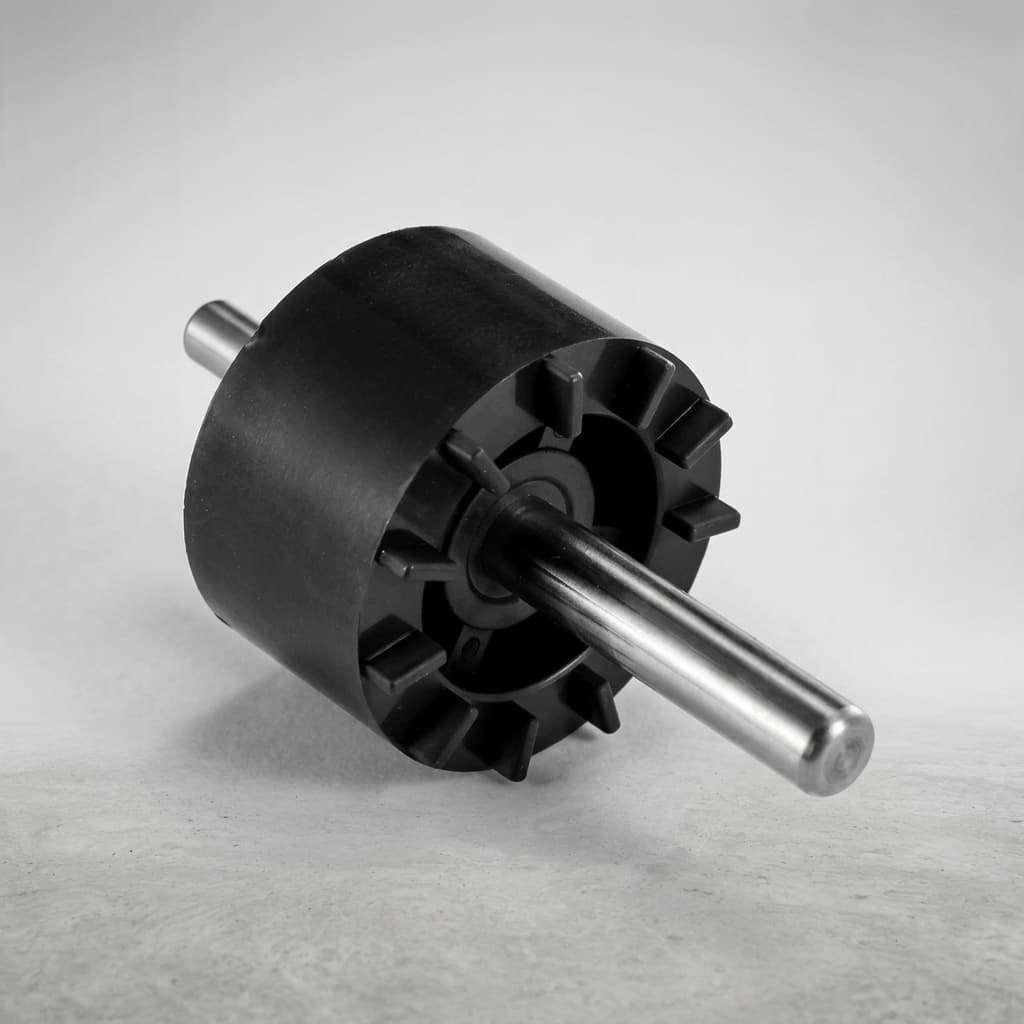

Yes, when the motor design is built around ferrite output. They are commonly reviewed for stepper, BLDC, pump, and actuator rotors where cost and geometry matter.
Include 2D/3D drawing, material target, magnetic pattern, and sensing datum, operating temperature, vibration, media exposure, and lifetime requirement, and sample quantity, tooling target, annual forecast, destination, and PPAP needs. If the part is tied to automotive or safety-critical sensing, also include PPAP, traceability, and magnetic test expectations.
Inquiry Email
Include drawing, material, pole pattern, temperature, compliance, and PPAP needs.
