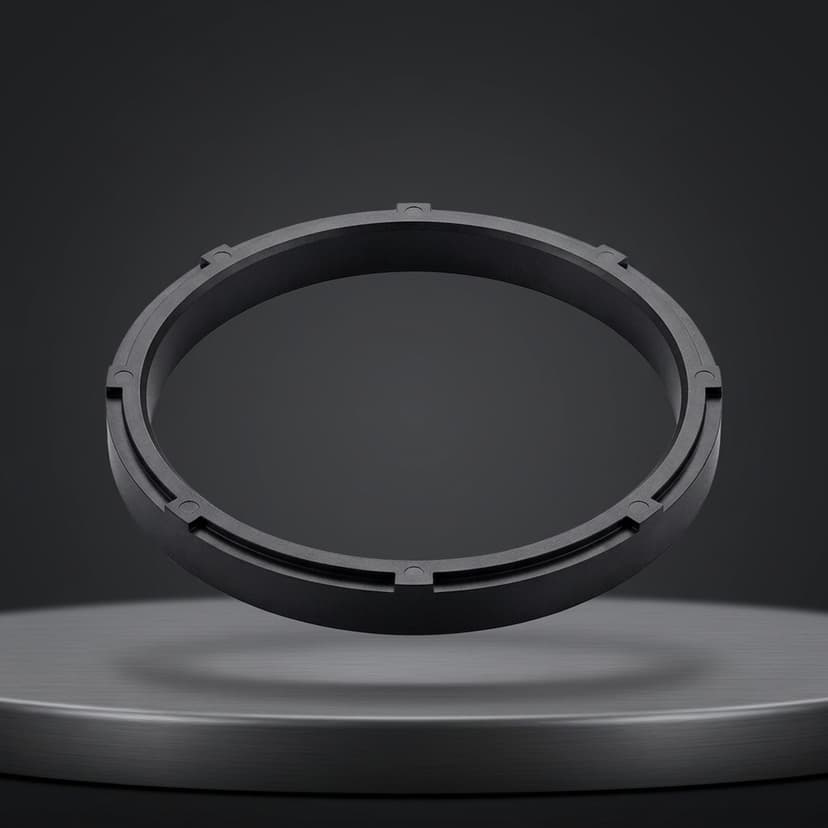

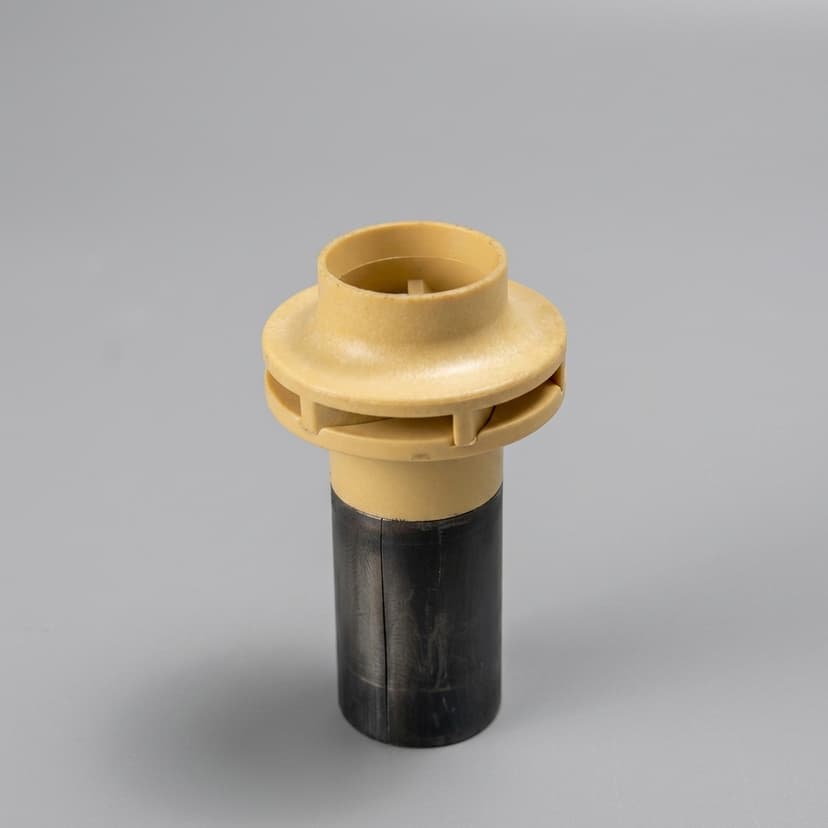

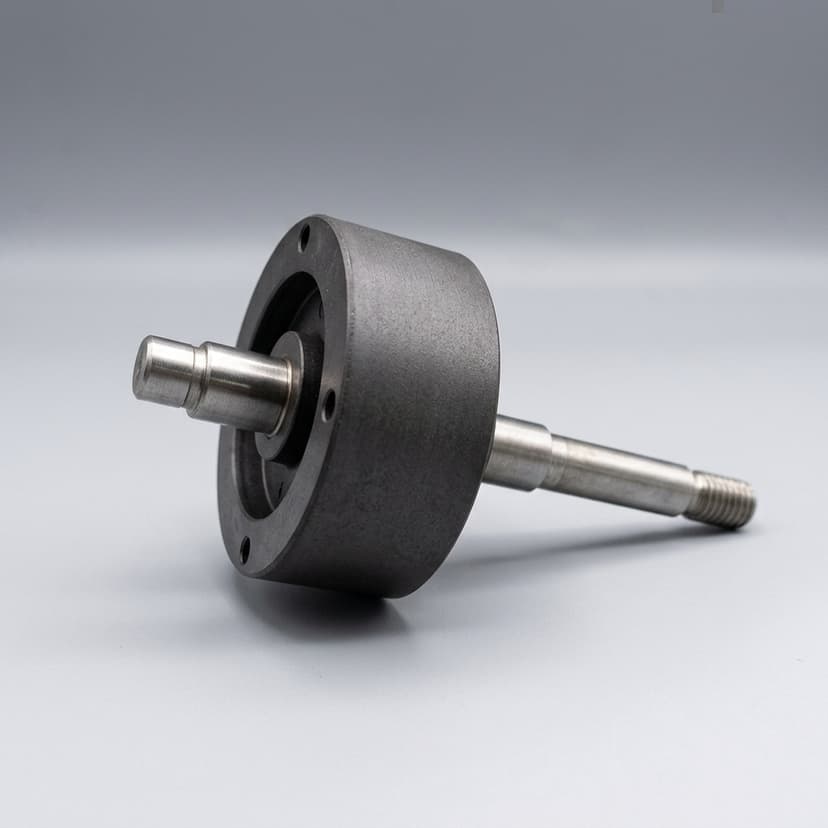

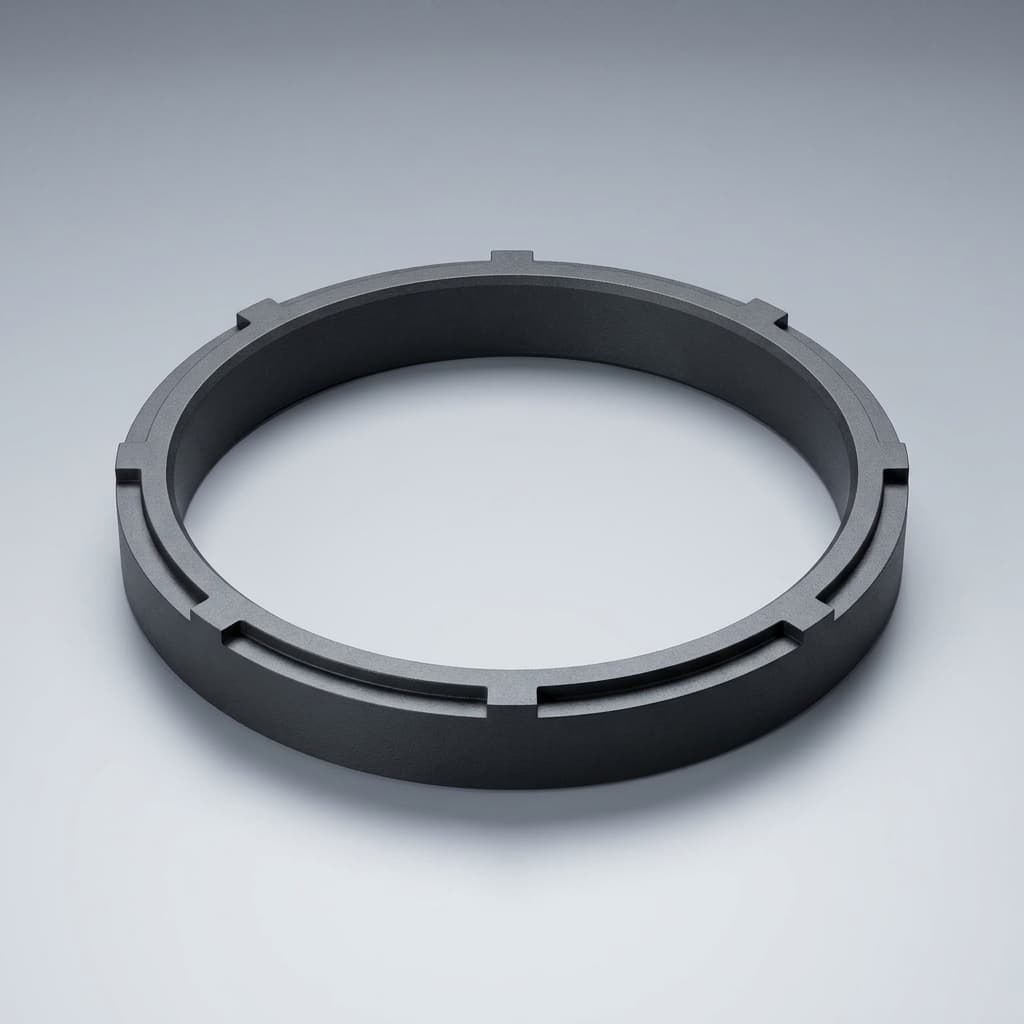

Integrated molded magnet and impeller assemblies for water pumps, coolant pumps, and compact fluid-control systems.
Water Pump Impeller Magnet Assemblies is most relevant when best for pump manufacturers replacing glued magnet rotors or consolidating magnet, sleeve, and impeller features. Typical solution programs include Automotive water pumps, Coolant pump rotors, and Appliance pumps, so the early review should confirm fluid exposure, hydrolysis, chemical compatibility, and resin selection.
Before sample tooling, align on 2D/3D drawing, material target, magnetic pattern, and sensing datum and operating temperature, vibration, media exposure, and lifetime requirement. The first acceptance check is media compatibility (Water, coolant, refrigerant, chemical, or dosing fluid by project), because the binder and insert interface must survive the actual fluid environment, not only room-temperature dry testing.
The main risk is brittle sintered magnet carried into a vibration-critical assembly; control it by review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety. Also review rotor balance and magnetic pattern accepted without measurable criteria before moving from prototypes to repeat production.
| Evaluation Metric | Typical Range | Buyer Relevance |
|---|---|---|
| Media compatibility | Water, coolant, refrigerant, chemical, or dosing fluid by project | The binder and insert interface must survive the actual fluid environment, not only room-temperature dry testing. |
| Rotor balance | Defined by speed, bearing support, and noise requirement | Impeller magnet assemblies combine magnetic and hydraulic rotating-part constraints. |
Yes, subject to DFM. The drawing should define fluid exposure, impeller geometry, magnet pole pattern, and rotor balance target before tooling review.
Include 2D/3D drawing, material target, magnetic pattern, and sensing datum, operating temperature, vibration, media exposure, and lifetime requirement, and sample quantity, tooling target, annual forecast, destination, and PPAP needs. If the part is tied to automotive or safety-critical sensing, also include PPAP, traceability, and magnetic test expectations.
