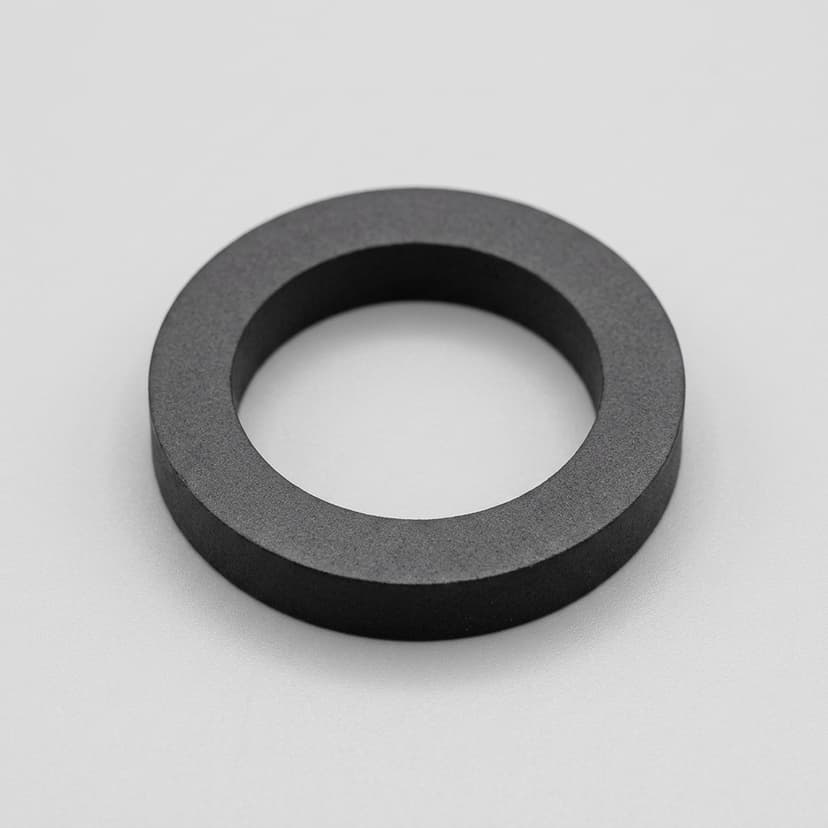

Hybrid bonded magnet compounds that blend NdFeB, ferrite, SmFeN, or other powders to balance cost, output, and supply-chain risk.

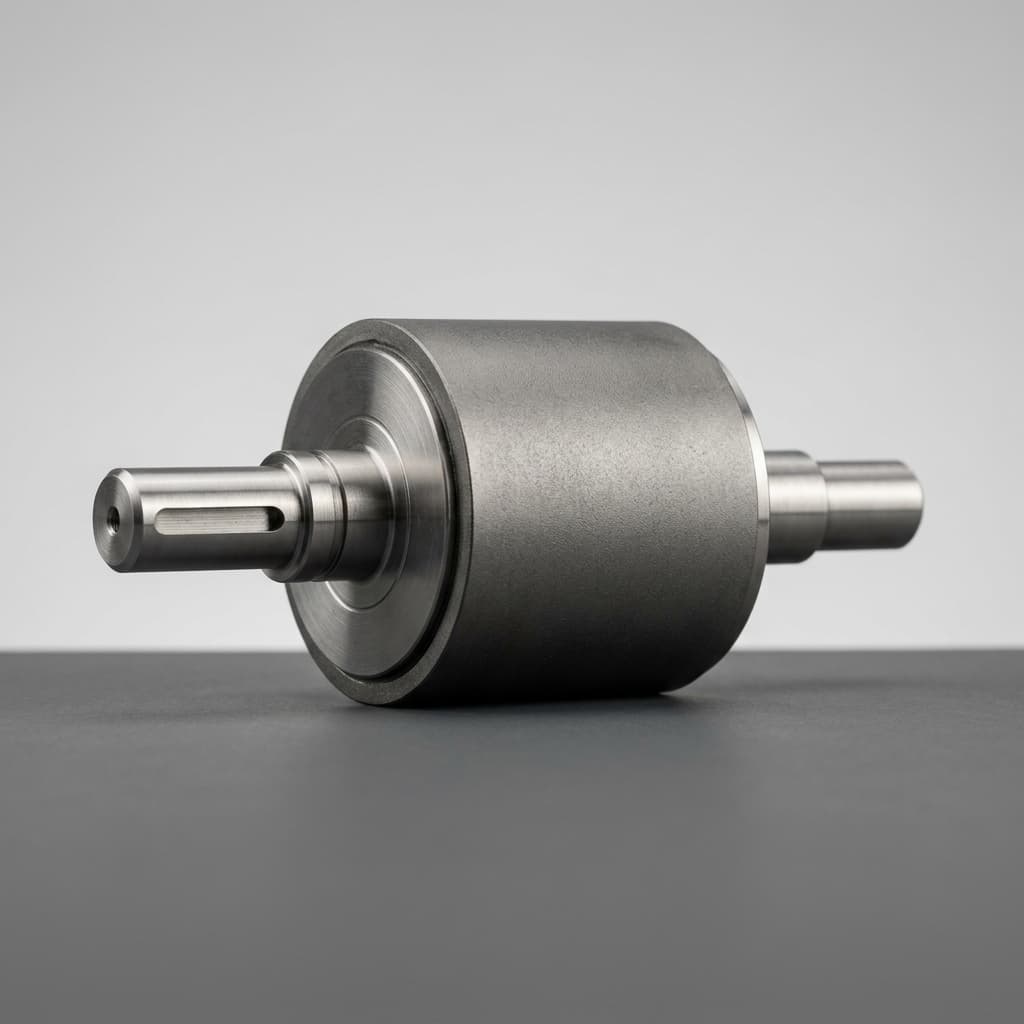

Hybrid Injection Molded Magnets is most relevant when best for value engineering teams that need more output than ferrite but cannot accept full rare-earth cost, supply, or corrosion assumptions. Typical product programs include Cost-down motor rotors, Sensor magnetic targets, and High-volume actuator rings, so the early review should confirm powder blend ratio, binder compatibility, and molded flow stability.
Before sample tooling, align on 2D/3D drawing, material target, magnetic pattern, and sensing datum and operating temperature, vibration, media exposure, and lifetime requirement. The first acceptance check is blend objective (Cost reduction, corrosion margin, output increase, or demag risk reduction), because a hybrid magnet only makes sense when the tradeoff target is explicit and measurable.
The main risk is brittle sintered magnet carried into a vibration-critical assembly; control it by review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety. Also review functional acceptance and magnetic pattern accepted without measurable criteria before moving from prototypes to repeat production.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Blend objective | Cost reduction, corrosion margin, output increase, or demag risk reduction | A hybrid magnet only makes sense when the tradeoff target is explicit and measurable. |
| Functional acceptance | Flux window, torque target, sensor curve, or pole map | Hybrid compounds should be released by application performance, not by powder ratio alone. |
Hybrid compounds are reviewed when a standard ferrite, NdFeB, SmFeN, or SmCo compound misses the target on cost, corrosion, output, or supply risk.
Include 2D/3D drawing, material target, magnetic pattern, and sensing datum, operating temperature, vibration, media exposure, and lifetime requirement, and sample quantity, tooling target, annual forecast, destination, and PPAP needs. If the part is tied to automotive or safety-critical sensing, also include PPAP, traceability, and magnetic test expectations.
