Chip-Free Magnet Rotors

Injection molded magnetic rotors engineered to eliminate edge chipping, cracking, and particle contamination in critical assemblies.

Target Buyer:Best for engineering teams resolving field failures caused by fractured sintered magnets or seeking to derisk a new sensor design.

Capability Highlights

Resin-bound magnetic powder completely eliminates brittle fracture risks
Protects sensitive sensor ICs and motor bearings from magnetic particle contamination
Maintains structural integrity under automotive vibration and thermal shock

Typical Applications

Enclosed automotive sensors
High-vibration motor environments
Cleanroom actuator assemblies

Engineering Focus

Comparative impact and vibration testing vs. sintered alternatives
Resin matrix selection (PPS, PA) for environmental durability
Optimization of molded radii and gating to prevent stress concentrations

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Impact and vibration survivability	Passes standard automotive multi-axis vibration testing without edge mass loss	A single microscopic magnetic chip can lock a micro motor or distort a Hall sensor signal permanently.

RFQ Checklist

2D/3D drawing, material target, magnetic pattern, and sensing datum
Operating temperature, vibration, media exposure, and lifetime requirement
Sample quantity, tooling target, annual forecast, destination, and PPAP needs
Current failure mode (if replacing sintered), vibration profile, and drop-test requirements

Risk Controls

Brittle sintered magnet carried into a vibration-critical assembly: Review bonded magnet material and molded geometry when chipping, cracking, or adhesive failure can affect functional safety.
Magnetic pattern accepted without measurable criteria: Define flux density, pole count, angle error, sensing radius, concentricity, and inspection method before sample tooling.

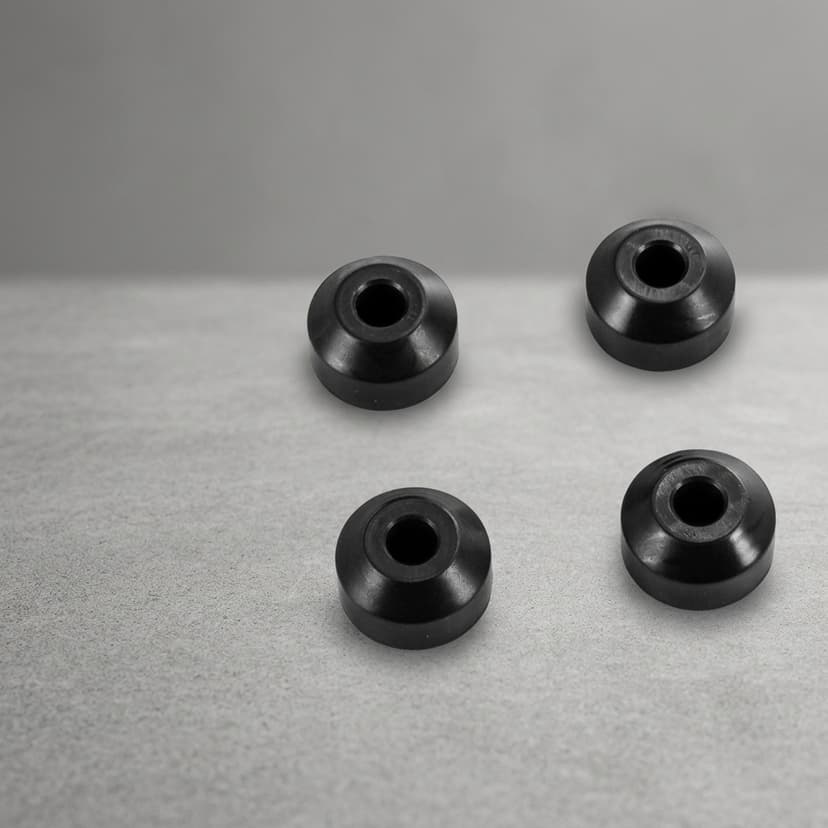

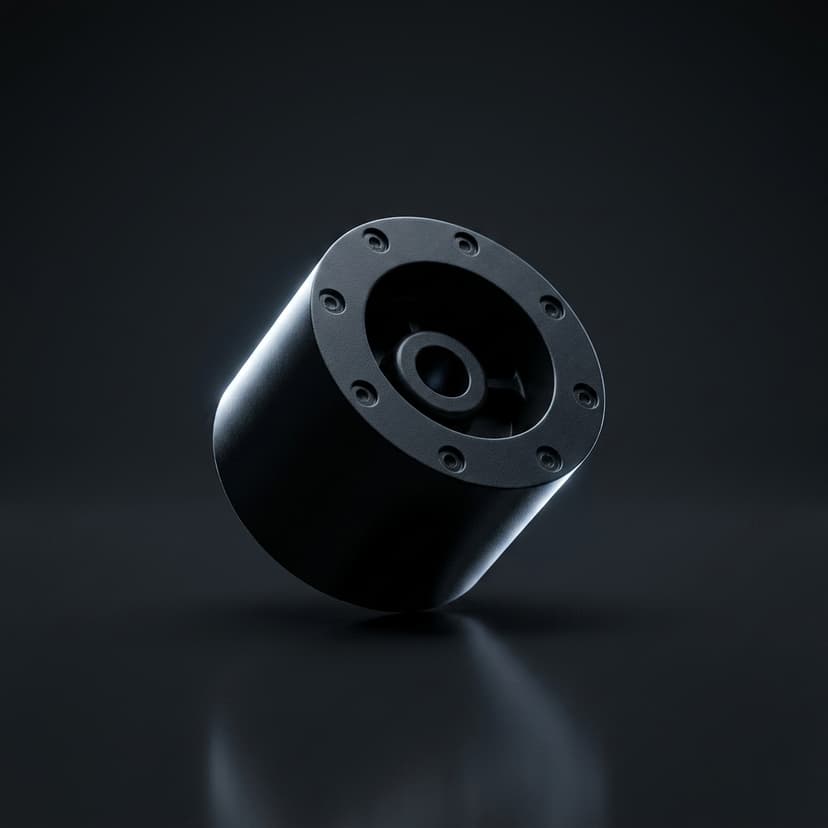

Product Gallery

Buyer FAQ

Are chip-free magnets weaker than standard sintered magnets?

Yes, bonded magnets have lower maximum energy products than sintered NdFeB, but they trade peak strength for unmatched mechanical toughness and moldable geometry.

Related Resources

Harsh Environment Non-Brittle Magnets
